C-TEC Accessible Disabled Persons Toilet Alarm Kit - Conventional (NC951)
SKU
NC951
£98.16 £81.80
C-TEC NC951 Accessible Disabled Persons Toilet Alarm Kit
The C-TEC NC951 is the UK's market-leading Disabled Persons Toilet Alarm Kit, now even better with a combined ceiling and wall mountable pull cord unit. This kit includes everything you need to comply with BS8300 for an emergency assistance alarm while being easy to install and simple to use.
In case of an emergency, a distressed person can easily raise an alarm by pulling the cord of the ceiling/wall pull, which activates a light and sounder outside the WC and on the system's Call Controller. The ‘Call Accept’ function of the system allows staff to send an intermittent call acknowledgement signal to the WC to confirm that help is on the way.

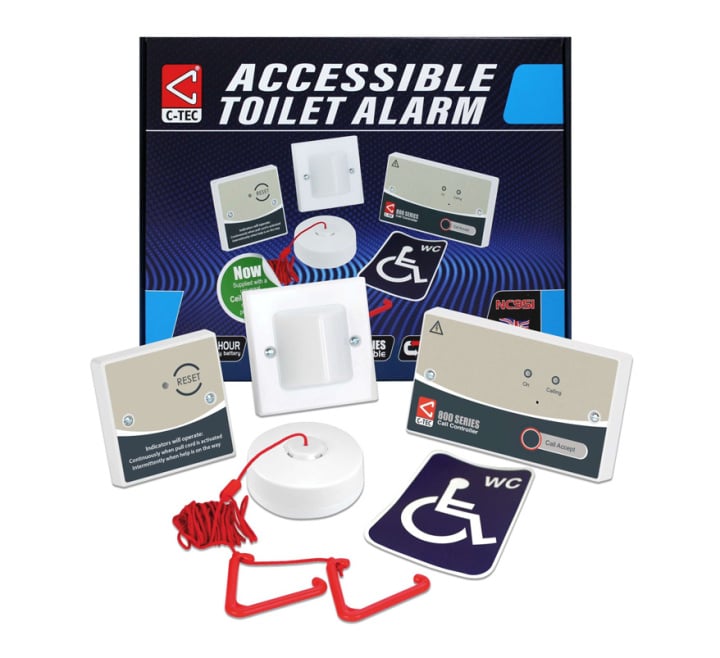

This kit includes an NC943B 12V 140mA Call Controller c/w standby battery & relay, NC807C Ceiling/Wall Pull, NC806CS Overdoor Light c/w Sounder, NC809DBBT Accessible Toilet Reset Point c/w Sounder & NC949 Accessible WC Sticker. It can be wired in 4 core stranded security cable and is suitable for use as a single zone assistance alarm in changing rooms, solariums, interview rooms, reception areas, and more.
Investing in this Disabled Persons Toilet Alarm kit provides peace of mind for both staff and visitors, ensuring that help is easily accessible in the event of an emergency.
| Key Features |
|---|
| > Accessible Disabled Persons Toilet Alarm Kit > Complies with BS8300 > Ceiling and wall pull cord unit > Easy to install > Easy to use to raise emergency alarm > The system's ‘Call Accept’ function allows staff to send an intermittent call acknowledgment signal to the WC to confirm help is on the way > Kit comprises: Call controller w standby battery & relay; Ceiling/wall pull; overdoor light; Reset point; Sounder, WC sticker > Can be wired in 4-core stranded security cable > Can also be used as a single zone assistance alarm in changing rooms, solariums, interview rooms, reception areas and more |
| Manufacturer | C-TEC |
|---|---|
| MPN | NC951 |
| EAN | 5056059605975 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Dimensions: Size of kit box containing all items: | W:147mm x H:87mm x D:93mm (NC943B) W:87mm x H:87mm x D:68mm (NC806CS) W:87mm x H:87mm x D:24mm (NC809DBBT) Ceiling/wall pull measures 93mm diameter x D:27mm W:285mm x H:201mm x D:55mm (NC951) |
| Mains Supply: | 230V 50/60Hz (23mA max. current) ~50Hz |
| Internal power supply: | 12V dc |
| Total output current: | Limited to 140mA |
| Quiescent current: | See individual device listings for NC943B, NC807C, NC806CS and NC809DBBT |
| Max. battery size & type: | NC943B includes an onboard 500mA rechargeable standby battery that will power the system for up to 24 hours standby and 15 minutes alarm running time |
| Alarm current: | 40mA (all NC951 devices, this includes 18mA Zone current) |
| Auxiliary relays: | NC943B has one set of volt free relay contacts (NO/C/NC). Relay activates when a call is received by the controller. Rated at 30V dc @ 1A |
| Indicators: | NC807C & NC809DBBT have red reassurance LEDs; NC806CS has twin red Alarm LEDs; NC943B has a red Alarm and green Supply Present LED |
| Controls: | NC943B has a link-selectable Call Accept/Reset button; NC807C has a pull cord with 2xbangles to generate a call; NC809DBBT has a Reset button |
| Expansion connections: | For applications requiring more than one point of call (e.g. at the WC and the wash basin), up to 3 ceiling/wall pulls can be daisychained together |
| Call acknowledgement functionality: | Yes |
| Onboard Sounder: | Yes (on NC809DBBT, NC806CS and NC943B) |
| Onboard Infrared receiver: | No |
| Construction & finish: | Plastic |
| Operating temperature: | -5oC to +40oC, 95% humidity non-condensing |
| IP Rating: | IP41 (except ceiling/wall pull, IP21) |
| Weight: | 600g |
| Note: The NC951 kit box contains everything required for a stand-alone single zone accessible toilet alarm system. For multi-zone systems consider using one of C-TEC's NC910 or NC920 range of 10-20 Zone Call Controllers | |
