C-TEC SigTEL Network Communication Card (ECU722)
SKU
ECU722
£76.54
£63.78

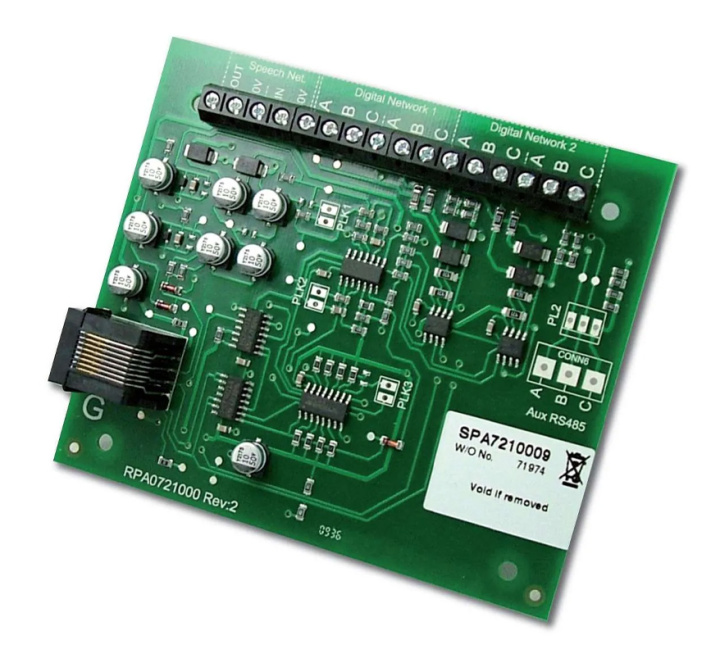

C-TEC ECU722 SigTEL Network Communication Card
- Buy 10 for £73.60 £61.33 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC SigTEL Network Communication Card (ECU722)
The C-TEC ECU722 Network Communication Card is an optional expansion device for the SigTEL master controllers. It enables up to 14 ECU-4, ECU-8, ECU-16 or ECU-8NT controllers to be interconnected, with one card required for each networked SigTEL controller. With the ECU722, it's easy to set up a system of up to 224 lines, which is equivalent to 14 ECU-16 controllers. The ECU-4, ECU-8 or ECU-16 controllers can take control of the system at any time by inputting a specific code. It is important to note that if the controller has an optional ECU-224 desk controller fitted, an ECU723 interface/network card should be used instead of an ECU722.
Key Features of the ECU722 |
|---|
|
> An optional system expansion device.
> Allows up to 14 ECU-4, 8, 16 or 8NT SigTEL controllers to be interlinked. > One card required per networked SigTEL controller. > Allows systems of up to 224 lines (14 x ECU-16 controllers) to be easily set-up. > Any ECU-4, ECU-8 or ECU-16 can take control of the system at any time by the input of a special code. > Note that for networked systems that do not require multiple control points, controllers without handsets are available (ECU-8NT). > IMPORTANT: To network a controller that has an optional ECU-224 desk controller fitted use an ECU723 interface/network card instead of an ECU722 |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | ECU722 |
Write Your Own Review
FAQ’s for C-TEC SigTEL Network Communication Card (ECU722)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC SigTEL Network Communication Card (ECU722)
| Dimensions: |
W:92mm x H:108mm x D:20mm |
| Connections: | Cat 5 patch lead (supplied) connects the ECU722 to a master controller |
| Network specification: | The ECU722 card transmits speech via a single wiring loop and digital data via two linear RS485 networks. The network should be connected using 4 x 2 core 1.5m2 enhanced fire-rated cable. |
| Weight: | 56g |
| Notes: It is recommended two separate cable paths be run with each path containing a single speech and single data cable (which should not be mixed in the same cable). See ECU-4/8/16 Instructions | |
