Conventional Fire Alarm Panels

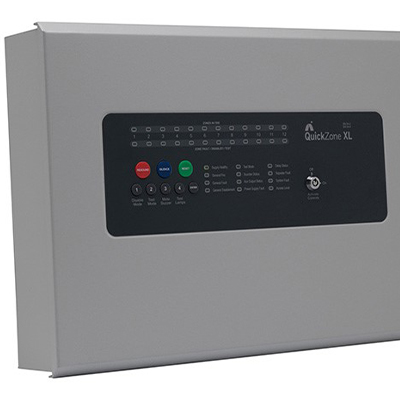

Advanced QuickZone and QuickZone XL fire panels support 2-32 zones, are approved to EN54-2&4 and deliver a host of performance, configuration and programming features. A QuickZone system, as the name suggests is quick and simple to install and manage.

QuickZone’s standard and XL panel formats allow absolutely the best solution to be selected and makes it ideal for any installation where a conventional / twin-wire panel is required.

We offer the full range of Sigma CP conventional fire products from Kentec, including the Sigma CP control panels, repeater panels and the full suite of ancillaries.

C-TEC's award-winning CFP conventional fire panels are LPCB certified to EN54-2/4 and offer an array of user and installer-friendly features at a very competitive price.

Supplied in an attractive flush or surface mountable plastic enclosure, 2, 4 and 8 zone versions are available, each featuring four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry. A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.

The range includes Standard and Economy versions with optional repeaters, relay expansion cards and EN54-13 interface boards available for selected models.

The Siemens Cerberus FIT (FC120 Series) are compact conventional fire alarm control panels with an integrated operating unit for 2, 4, 8 or 12 fire detection zones. The panels are compatible with Siemens 110-series / DS11 and SynoLINE300/600 series conventional devices. These fire control panels are designed to offer very simple operation for the end-user while providing exceptional flexibility with a comprehensive list of features.

The ORION range of conventional control panels from Global Fire Equipment features three models with 2, 4 and 8 zones of detection. Housed in a stylish modern ABS housing, the ORION is the ideal control panel for smaller installations.

Designed and manufactured to comply with the requirements of EN54 parts 2 and 4 (1998), the ORION uses active end of line monitoring to permit head removal protection as required by BS5839 (detector bases must be fitted with diode).

Programmable zone coincidence and alarm delay timer (0-10 min) are standard features to help reduce false alarms.

The one-man test facility enables simple and rapid testing of the system during commissioning and maintenance operations.

ESP MAGfire conventional fire alarm control panels are available in 2, 4 and 8 zone variants as standard. The 8 Zone MAG816 panel is also fully expandable up to 16 zones using zone expansion cards. The 2 and 4 zone MAG panels are offered in either durable ABS casings or robust metal enclosures. MAGfire conventional fire panels are aesthetically pleasing, reliable and highly cost-effective.

The GST100A Fire Alarm panel, combined with GST’s range of conventional devices, is designed primarily with small or less complicated applications in mind. The GST100A Fire Panel is a conventional EN54 certified panel which is available in 2, 4, 8, 16 zone variants.

The GST conventional panels have been designed with a view to simplifying user operation. It is easy to install and operate. Control functions are enabled by a key switch whilst programming functions are enabled by a key switch in combination with an internal switch.
