C-TEC Conventional Single Zone Call Controller c/w 12V 140mA PSU (NC943B)
SKU
NC943B
£89.80 £74.83

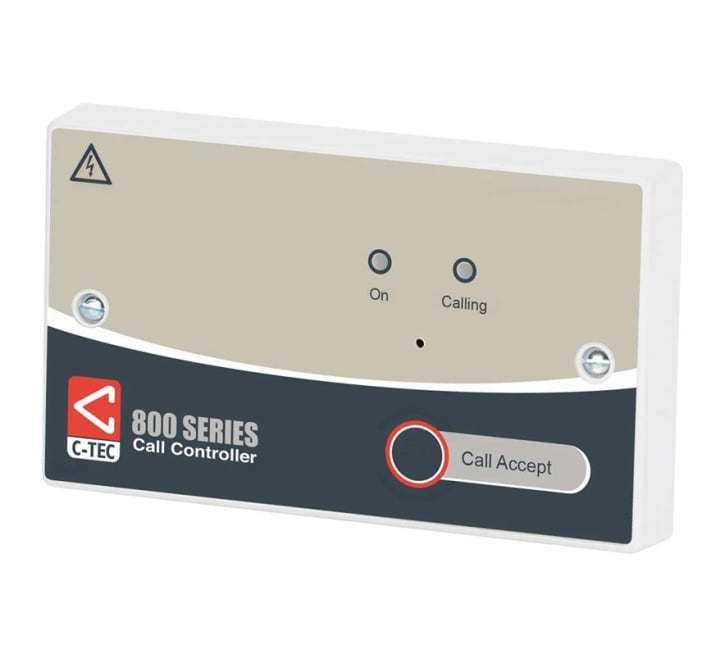

C-TEC NC943B Single Zone Call Controller c/w 12V 140mA PSU, call accept
The C-TEC NC943B is a compact and attractive single-zone call controller. With its 12V 140mA PSU and standby battery, this call controller is compatible with C-TEC’s entire range of 800 Series Call System components, making it easy to integrate into your existing system.
Designed to indicate standard (constant tone) and emergency (intermittent tone) calls, the NC943B features a volume adjustable sounder and a link-selectable Call Accept/Reset button, giving you complete control over your call system. The Power On and Alarm ‘CALLING’ LEDs provide clear visual indication of system status, while the volt-free relay output allows for the optional connection of externally powered beacons and other devices (relay activates on active call signal).
With a standby battery that provides up to 24 hours standby and 15 minutes alarm running time, the NC943B is a reliable and effective call controller that you can depend on. It mounts on a standard UK 25mm double gang flush or surface back box, and is also available as part of the NC951 Accessible Toilet Alarm Kit.
| Key Features |
|---|
| > Single Zone Call Controller > 12V 140mA PSU and standby battery supplied > Compatible with 800 Series Call System components > Can indicate standard and emergency calls > Volume adjustable sounder > Link-selectable Call Accept/Reset button > Power On and Alarm 'CALLING' LEDs > Volt-free relay output for optional connection of externally powered beacons etc > Relay activates on active call signal > Standby battery provides up to 24 hours standby and 15 minutes alarm running time > Mounts on standard UK 25mm double gang flush or surface back box |
| Manufacturer | C-TEC |
|---|---|
| MPN | NC943B |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Dimensions: | W:147mm x H:87mm x D:34mm Mounts on standard 25mm UK double gang back box. |
| Mains Supply: | 230V 50/60 Hz (23mA max. current) 50Hz frequency |
| Internal Power Supply: | 12V dc |
| Quiescent current: | 0mA |
| Total output current: | Limited to 140mA |
| Max. battery size & type: | Includes an onboard 500mA battery back up facility providing 24 hours standby and 15 mins alarm running time |
| Alarm current: | Determined by the number/type of field devices connected to the call controller/system |
| Indicators: | Red alarm LED; Green supply present LED (flashes green when standby battery is active) |
| Auxiliary relays: | Includes one set of volt free relay contacts (NO/C/NC). Relay activates when a call is received by the controller. Rated 30V dc @ 1A |
| Open collector outputs: | None |
| Connections: | -ve (common -ve terminal for all devices); +ve (+12V nominal supply for powering emergency call points, overdoor lights etc); Signal (the trigger line that activates the NC943B) |
| Expansion connections: | None |
| Controls: | Adjustable volume control; Disable standby battery; Link-selectable Call Accept/Reset button. When Accept is selected, indicators on relevant field devices will activate intermittently) |
| Call acknowledgement functionality: | Yes |
| Construction & finish: | Plastic |
| Operating temperature: | -5oC to +40oC, 95% humidity non-condensing |
| IP Rating: | IP30 |
| Weight: | 294g |
