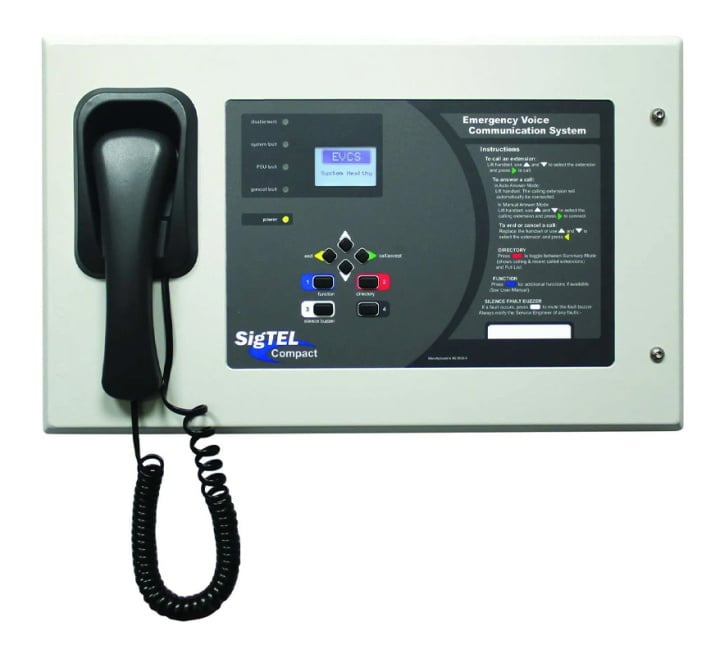

C-TEC SigTEL 8 Line Master Controller with Handset (ECU-8)
Product Details for C-TEC SigTEL 8 Line Master Controller with Handset (ECU-8)
The C-TEC ECU-8 8 Line Master Controller is a reliable communication system suitable for disabled refuge, fire telephone, and stadium marshalling applications. The system allows operators to communicate with up to eight disabled refuge or fire telephone outstations.
Including a semi-recessed, less obtrusive handset, the ECU-8 boasts improved networking capability, allowing systems of up to 224 lines to be created with optional/additional desk unit control. Its backlit LCD and unique ‘auto-learn’ facility enables fast and easy system set-up.
The ECU-8 can be semi-flush mounted using an EVC385 bezel, and its operation can be maintained for 24 hours (standby) and 3 hours (in use) using 2 x 12V 7 Ahr batteries. Additionally, the ECU-8 can be easily interfaced to NC951 accessible toilet alarms, PDA range hearing loop systems, strobes, CCTV activation relays, and other compatible systems.
Key Features of the ECU-8 |
|---|
|
> Ideal for disabled refuge, fire telephone and stadium marshalling applications.
> Allows operators to communicate with up to eight disabled refuge or fire telephone outstations. > Recently upgraded to include a semi-recessed, less obtrusive handset. > Improved networking capability allow systems of up to 224 lines to be created with optional/additional desk unit control. > Backlit LCD and unique ‘auto-learn’ facility allows fast system set up. > Can be semi-flush mounted using an EVC385 bezel. > Operation can be maintained for 24 hours (standby) and 3 hours (in use) using 2 x 12V 7 Ahr batteries. > Easily interfaced to NC951 accessible toilet alarms, PDA range hearing loop systems, strobes, CCTV activation relays, etc. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | ECU-8 |
FAQ’s for C-TEC SigTEL 8 Line Master Controller with Handset (ECU-8)
Product Specification for C-TEC SigTEL 8 Line Master Controller with Handset (ECU-8)
| Dimensions: |
W:410mm x H:250mm x D:80mm (base) W:439mm x H:274mm x D:7mm (lid) Handset protrudes 30mm beyond lid |
| Approvals: | Facilitates compliance with BS5839-9 when correctly installed |
| Mains supply: | 230V 50/60Hz |
| Mains rated current: | 500mA |
| Internal power supply: |
19V-28.5V (27V nominal). Ripple 7V max (battery fault) |
| Total output current: |
Limited to 1.5A @ 230V ac |
| Quiescent current: | 100mA (controller with fault buzzer sounding) plus 1mA per Type A outstation and 3.2mA per Type B outstation |
| Max. battery size and type: | 2 x 12V 7Ah VRLA connected in series |
| No. of lines: | 8 (extra available on networked systems) |
| Auxiliary relays: | Changeover fault relay (failsafe) 30V 1A max. |
| Open collector outputs: | (OP1): Activates when the ECU is ringing (OP2): Activates when there is an active accessible toilet alarm call (OP3): Closes when handset is off hook |
| Other outputs: | +24V. Typically used to supply power to equipment connected to the ECU's open collector outputs (relays etc) |
| Engineer (AL3) functions: | Engineer mode and reset buttons (internal) |
| Indicators: | 128 x 64 pixel LCD display; Disablement; System fault; PSU fault; General fault; Power on |
| Controls: | Handset; Scroll buttons; Hold; Call Accept; Function; Directory; Silence Buzzer |
| Construction & finish: | Metal lid and base, RAL7035 grey texture |
| IP Rating: | IP20 |
| Operating conditions/temp: | -5oC to +40oC, max. humidity 95% |
| Weight: | 3.1kg without batteries |
