C-TEC Green Type B Disabled Refuge Outstation - Surface Mount (EVC302GS)
SKU
EVC302GS
£162.46 £135.38

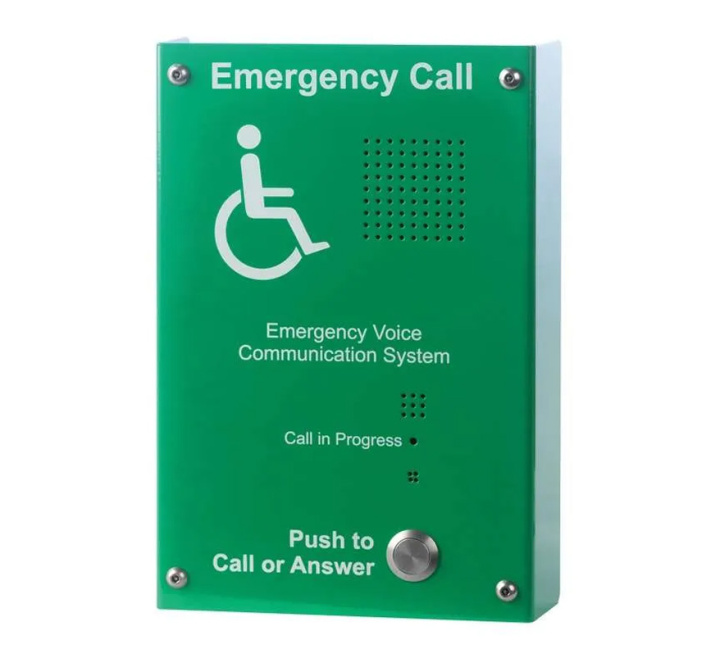

C-TEC EVC302GS Green Disabled Refuge Outstation, surface mount
The C-TEC EVC302GS is a sleek and visually appealing Type B disabled refuge outstation, designed to seamlessly integrate with C-TEC's SigTEL emergency voice communication system. Constructed from robust and resilient green steel, this outstation enables individuals situated in a disabled refuge area to easily communicate with a SigTEL Master Controller at the touch of a button, while also providing the option for two-way communication.
With its convenient 'Push to Call or Answer' button, 'Call in Progress' LED, buzzer, microphone, and loudspeaker, the C-TEC EVC302GS offers true duplex speech for effortless and efficient communication. Additionally, the unit comes equipped with connections for an optional induction loop system and a general-purpose open collector output that closes upon activation of the unit.
When installed correctly, the C-TEC EVC302GS satisfies and exceeds the stringent requirements of BS 5839-9, making it an ideal choice for those seeking a reliable, high-performance disabled refuge outstation.
| Key Features |
|---|
| > An attractive Type B disabled refuge outstation. > Stylishly finished in tough, durable green steel. > Suitable for use with C-TEC’s SigTEL disabled refuge / emergency voice communication system. > Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa). > Offers true duplex speech. > Features a ‘Push to Call or Answer’ button, a ‘Call in Progress’ LED, buzzer, microphone and loudspeaker. > Includes connections for an optional induction loop system and a general-purpose open collector output that closes on activation of the unit. > Meets and exceeds the requirements of BS 5839-9 when correctly installed. |
| Manufacturer | C-TEC |
|---|---|
| MPN | EVC302GS |
| EAN | 5056059611334 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Dimensions: | W:160mm x H:240mm x D:53mm |
| Approvals: | Facilitates compliance with BS5839-9 when correctly installed |
| Supply/operating voltage: | 11V DC derived from a compatible SigTEL Master Controller (drops to 6V DC when in use) |
| Quiescent current: | 3mA |
| Activation current: | 25mA (current draw when intercom in use) |
| Open collector outputs: | O/P +ve & O/P -ve (closes when outstation is active, typically used to trigger a 3rd party CCTV camera, opto-isolated, normally open, max. 24V DC, 3mA) |
| Indicators: | Red call in progress LED |
| Controls: | External 'Push to Call or Answer' button (Off Hook); Internal Loudspeaker volume control; Engineer's 'On Hook' and 'Off Hook' pins |
| Expansion connections: | AFILS _ve & AFILS -ve (typically connected to the line-level input of an optical induction loop amplifier): Off-hook and -ve (can be optionally connected to an NC951 accessible toilet alarm kit) |
| Construction & finish: | Green steel |
| IP Rating: | IP20 |
| Operating conditions/temp: | -5oC to +40oC, max. humidity 95% |
| Weight: | 1.3kg |
| Notes: Microphone frequency response 250 Hz to 5 kHz +/- 3 dB; Loudspeaker frequency response 250 Hz to 4kHz +/- 3 dB; Audio output level: 0 dB (775 mV) balanced line | |
