Eaton BiWire Ultra Sounder Base (EF5021BWS)
SKU
EF5021BWS
£22.92
£19.10
Eaton BiWire Ultra Sounder Base (EF5021BWS)
- Buy 10 for £22.38 £18.65 each and save 2%
In Stock
Product Details for Eaton BiWire Ultra Sounder Base (EF5021BWS)

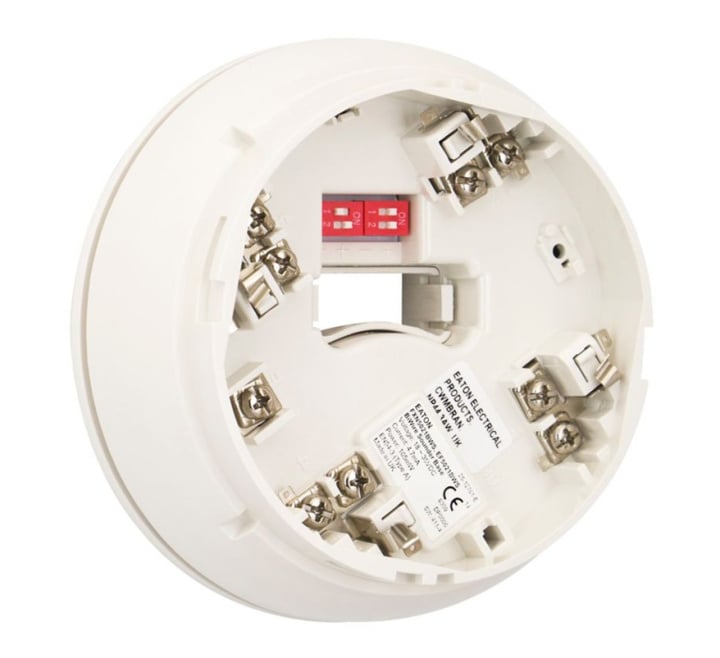

The Eaton EF5021BWS BiWire base sounder can be used both with a detector or as a standalone device. The base sounder incorporates a detector mounting base, allowing a detector to be fitted directly to the base or, alternatively, a cover plate can be used to provide a dedicated, discreet, standalone device.
The EF5021BWS is suited to applications where ambient noise is high, including schools, retail units, healthcare, offices and nursing homes, and a wide variety of industrial environments.
Key Features of the EF5021BWS |
|---|
|
> Eaton Biwire Sounder Base
> White > 3 EN certified tones > IP21 rated > EN54 Pt3 (Fire Alarm Sounders) certified > 90dB sound output > 3 year warranty |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EF5021BWS |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton BiWire Ultra Sounder Base (EF5021BWS)
No questions yet. Be the first to ask the question!
Product Specification for Eaton BiWire Ultra Sounder Base (EF5021BWS)
| Product: | Eaton Biwire Sounder Base |
| Catalogue no.: | EF5021BWS |
| Dimensions: | Dia:114mm x D:37mm |
| Warranty: | 3 year |
| EN Certified tones: | 3 |
| Nominal voltage: | 25.5 VDC |
| Type of current: | DC |
| Standby current: | 15 |
| Alarm current: | 11 mA |
| Electricity consumption: | 0.11 A |
| Sound output: | 90 dB |
| System wiring: | 2.5mm |
| Cable entry: | Rear |
| EN certification standards: |
EN54 Pt 3 (Fire Alarm Sounders) |
| Material housing: |
Plastic |
| System typology: |
Conventional (Non-addressable) |
| Operating temperature: |
55oC to -10oC, 95% humidity max. |
| Construction material: | ABS |
| Housing colour: | White |
| IP Rating: | IP21 |
| Weight: | 0.178 kg |
