Eaton BiWire Ultra Manual Call Point (EF201BWCP)
SKU
EF201BWCP
£15.71
£13.09
Eaton BiWire Ultra Manual Call Point (EF201BWCP)
- Buy 10 for £15.35 £12.79 each and save 2%
In Stock
Product Details for Eaton BiWire Ultra Manual Call Point (EF201BWCP)

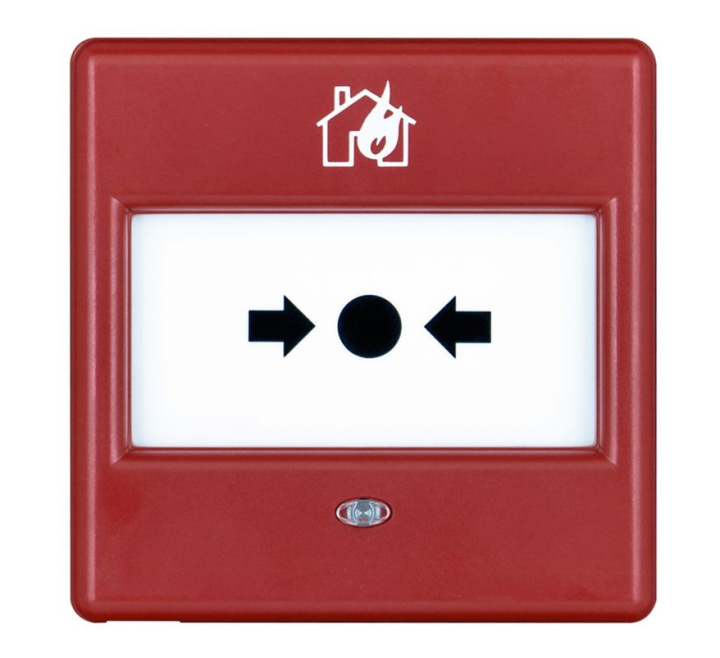

The Eaton EF201BWCP BiWire Ultra manual call point is designed for indoor use and can be either surface or flush mounted.
The EF201BWCP is compatible with Eaton's BiWire Flexi fire system, designed to be a flexible fire alarm system solution to protect offices, small warehouses, retail stores and primary schools.
These call points are designed for fast and simple installation and are supplied as standard with a frangible glass element and a test key for ease of maintenance. A comprehensive range of accessories is available to maximise the functionality of the call point for particular applications.
Key Features of the EF201BWCP |
|---|
|
> IP21C for indoor use
> Fast fit clip on front cover > Wide range of accessories available > Heavy duty terminals > Single tool for test and access > Robust construction > Quick and simple to install > Easy to maintain and service > Versatile installation |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EF201BWCP |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton BiWire Ultra Manual Call Point (EF201BWCP)
No questions yet. Be the first to ask the question!
Product Specification for Eaton BiWire Ultra Manual Call Point (EF201BWCP)
| Product: | Eaton BiWire Ultra Manual Call Point |
| Catalogue no.: | EF201BWCP |
| Dimensions: | W:87mm x H:87mm x D:53mm |
| Supply voltage: | 18 - 35Vdc |
| Alarm current: | 1 - 20 mA |
| Fitted with: |
Glass disc |
| Resettable: | No |
| LED indicator: | Red |
| Standby current: |
<22 |
| Type of messaging: |
Fire brigade alarm (red) |
| Mounting method: | Surface, wall (internal) |
| EN certification:: | EN54 Pt 11 (Manual Call Point) |
| No. of poles: | 1 |
| System typology: | BiWire |
| IP Rating: | IP21 |
| Operating temperature: | -10oC to 55oC (95% RH) |
| System wiring: | 0.28 - 2.5mm |
| Cable entry: | Rear |
| Colour: | Red |
| Materials: | ABS, Plastic |
| Weight: | 0.2 kg |
