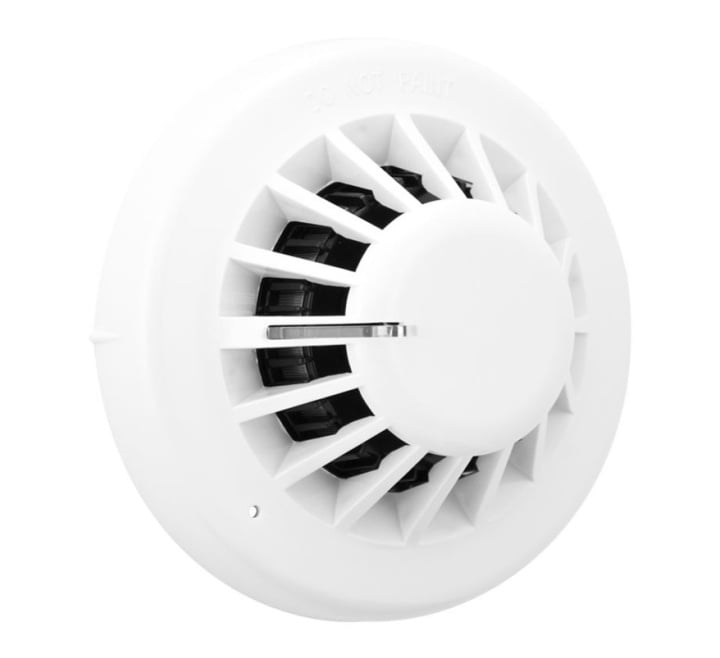

Eaton BiWire Ultra 5 in 1 Multi-Mode Detector (EFBW5IN1DET)
SKU
EFBW5IN1DET
£17.66
£14.72
Eaton BiWire Ultra 5 in 1 Multi-Mode Detector (EFBW5IN1DET)
- Buy 10 for £17.24 £14.37 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton BiWire Ultra 5 in 1 Multi-Mode Detector (EFBW5IN1DET)
The Eaton BiWire Ultra range offers a multi-mode, 5 in 1 detector, approved to both EN54 parts 5 & 7, which covers many building needs. It’s quick and simple to install with a stylish low profile design. The detector is mounted on our standard conventional base (FXN520). Each detector is fitted with a 360˚ viewable LED for indication.
This 5 in 1 detector can be configured to operate as either an optical detector, photo-thermal detector or 1 of 3 heat detector modes (rate of rise and 2 fixed heat models) using the four position switches located at the back of the detector. The EFBW5IN1DET is certified for use in all 5 modes.
Key Features of the EFBW5IN1DET |
|---|
|
> Compatible base EFXN520 (available separately)
> 5 modes in one detector > A range of sensor types > 360° indicator LED using lightpipe technology > Quick and simple to install > Easy to maintain/service > Suitable for a broad range of applications > Wide viewing angle for increased LED visibility > Positive “lock” indication > Low profile design suits any decor > Certified for use in all 5 modes > Suitable for use with Eaton's BiWire fire system > Approved to EN54: 5 & 7 (2001) > 3 year warranty |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFBW5IN1DET |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton BiWire Ultra 5 in 1 Multi-Mode Detector (EFBW5IN1DET)
No questions yet. Be the first to ask the question!
Product Specification for Eaton BiWire Ultra 5 in 1 Multi-Mode Detector (EFBW5IN1DET)
| Product: | Eaton BiWire 5 in 1 Detector |
| Catalogue no.: | EFBW5IN1DET |
| Dimensions: | Dia:104mm x D:42mm (excl base) Dia:104mm x D:55mm (incl base) |
| Operating voltage: | 15 - 30V DC |
| Standby current (max): | 30μA |
| Startup current (max): | 340μA |
| Alarm current (typ): | 25mA |
| Ambient temperature: | 75oC to -20oC (dependent on setting) |
| Relative humidity: | 0 to 93% |
| Mounting position: |
Ceiling in open areas |
| Mounting options: |
Surface mount with FXN520 base |
| Area coverage: |
100m2 (subject to local standards) |
| System wiring: |
2 Core |
| Material: | PC/ABS |
| Colour: | White |
| Compatible base (available separately): | EFXN520 - Detector is fixed and wired via mounting base |
| IP Rating: | IP40 |
| EMC: | CE Marked |
| Compatibility: | Suitable for use with BiWire fire system |
| Weight: | 0.08 kg |
