Eaton BiWire Ultra Sounder VAD Base (EF5021BWSB)
SKU
EF5021BWSB
£34.22
£28.52
Eaton BiWire Ultra Sounder VAD Base (EF5021BWSB)
- Buy 10 for £33.43 £27.86 each and save 2%
In Stock
Product Details for Eaton BiWire Ultra Sounder VAD Base (EF5021BWSB)

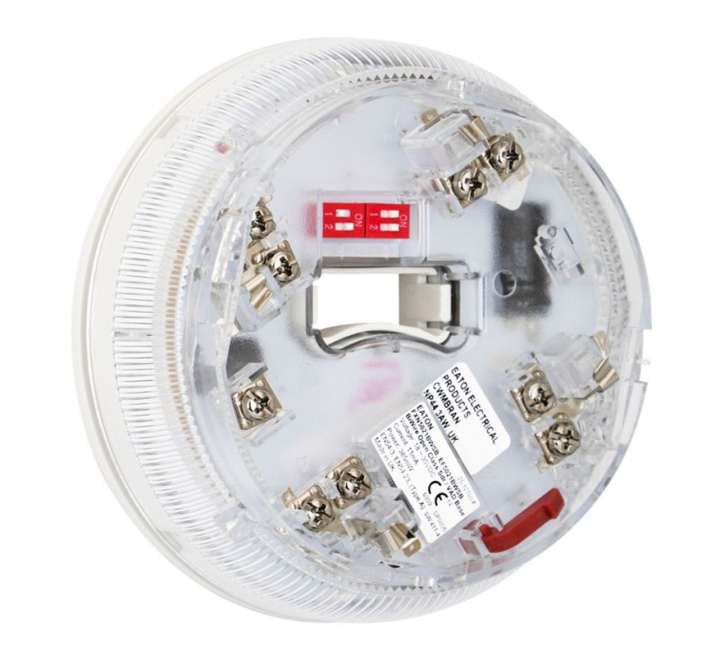

The Eaton EF5021BWSB BiWire base sounder visual alarm device (VAD), can be used both with a detector or as a standalone device. The base sounder VAD incorporates a detector mounting base, allowing a detector to be fitted directly to the base or, alternatively, a cover plate can be used to provide a dedicated, discreet, standalone device.
The EF5021BWSB is suited to applications where ambient noise is high, including schools, retail units, healthcare, offices and nursing homes, and a wide variety of industrial environments.
Key Features of the EF5021BWSB |
|---|
|
> White, 90dB
> IP21 rating > Certified to EN54-3 & EN54-23 > Standalone base sounder VAD offers the flexibility of use with or without the detector > Cover plate (optional) > First fix base, offers a compact design and reduces time of installation of the base with the detector > Easy to maintain and service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EF5021BWSB |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton BiWire Ultra Sounder VAD Base (EF5021BWSB)
No questions yet. Be the first to ask the question!
Product Specification for Eaton BiWire Ultra Sounder VAD Base (EF5021BWSB)
| Product: | Eaton BiWire Wall Sounder VAD |
| Catalogue no.: | EF5021BWSB |
| Dimensions: | W:114mm x H:114mm x D:37mm |
| Nominal voltage: | 18 - 25.5 Vdc |
| Power: | .264W |
| Standby current: | 15 |
| Alarm current: | 2.6 -11 mA |
| Sound output: | 90 dB |
| Electricity consumption: | .011A |
| Frequency sound signal: | .5 - 1.2 KHz |
| Type of acoustic signal: | Programmable |
| Type of acoustic signal device: | Sound generator |
| Type of optical signal: | Flash light |
| No. of tones: | 3 |
| Voice tones: | No |
| Type of optical signal: | Flash light |
| System typology: | BiWire |
| Operating temperature: | -10oC to 55oC (93% RH) |
| Cable entry: | Rear |
| System wiring: | 2.5mm |
| Mounting method: | Surface, Ceiling |
| Colour of housing: | White |
| Colour of Lens / Light: | Clear / White |
| Lamp type: | LED |
| IP Rating: | IP21 |
| Materials: | ABS, Plastic |
| EN Certified tones: | 3 |
| EN Certification standards: | EN54 Pt3 (Fire Alarm Sounders) EN54 Pt23 (Visual Alarms) |
| Compliance: | EN 54-23 |
| Warranty: | 3 years |
| Weight: | 0.178kg |
