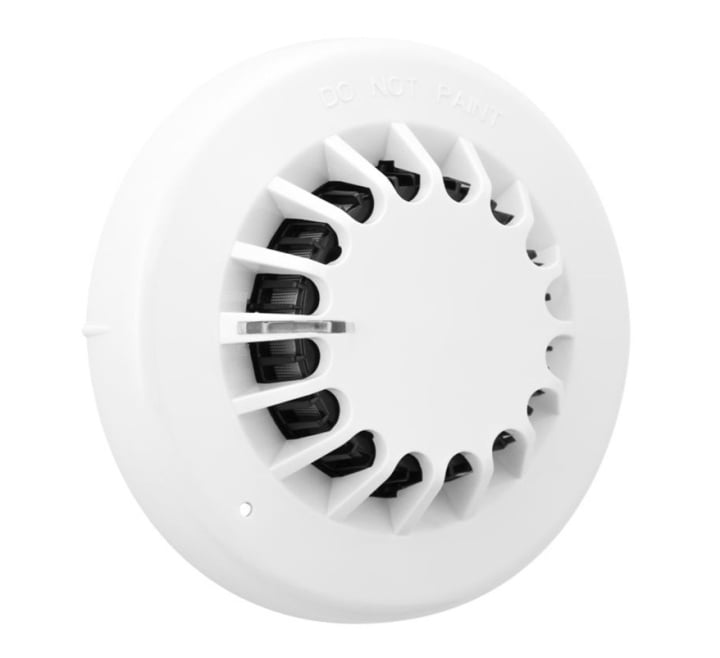

Eaton BiWire Ultra Optical Smoke Detector (EFBWOPTDET)
- Buy 10 for £13.88 £11.57 each and save 2%
In Stock
Product Details for Eaton BiWire Ultra Optical Smoke Detector (EFBWOPTDET)
The Eaton EFBWOPTDET is an optical smoke detector specifically designed for compatibility with the BiWire Ultra range of fire panels. It provides efficient detection for a wide range of applications, particularly for slow-burning or smouldering fires that produce visible smoke particles.
Equipped with advanced optical technology, this detector automatically adjusts its sensitivity to compensate for gradual scatter signal increase caused by contamination or dust accumulation. This ensures reliable and accurate performance over time.
For added convenience, these detectors can be programmed to blink their yellow LED every 2 seconds through a command from the main panel. This feature assists in locating any breaks in the zone cabling, simplifying maintenance and troubleshooting processes.
Key Features of the EFBWOPTDET |
|---|
|
> Eaton Biwire Optical Smoke Sensor
> Compatible base EFXN520 (available separately) > 360° indicator LED using lightpipe technology > Quick and simple to install > Easy to maintain/service > Suitable for a broad range of applications > Wide viewing angle for increased LED visibility > Positive “lock” indication > Low profile design suits any decor > Approved to EN54:7 |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | EFBWOPTDET |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 3 Years |
FAQ’s for Eaton BiWire Ultra Optical Smoke Detector (EFBWOPTDET)
Product Specification for Eaton BiWire Ultra Optical Smoke Detector (EFBWOPTDET)
| Product: | Eaton BiWire Optical Smoke Sensor |
| Catalogue no.: | EFBWOPTDET |
| Dimensions: | W:104mm x H:104mm x D:42mm |
| Operating voltage: | 15 - 35V DC |
| Standby current (max): | 80μA |
| Alarm current (typ): | 20mA |
| Ambient temperature: | 60oC to -10oC |
| Relative humidity: | 0 to 95% |
| Height (without base): | 34mm |
| Height (with base): | 47mm |
| Diameter: | 104mm |
| Weight (without base): | 78g |
| Material: | PC/ABS |
| Colour: | White |
| Compatible base (available separately): | EFXN520 - Detector is fixed and wired via mounting base |
| Weight: | 0.08 kg |
