Eaton Conventional 5 in 1 Multi-Mode Detector (FXN922)
SKU
400017FIRE-0031X
£21.96
£18.30
Eaton Conventional 5 in 1 Multi-Mode Detector (FXN922)
- Buy 10 for £21.46 £17.88 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Conventional 5 in 1 Multi-Mode Detector (FXN922)

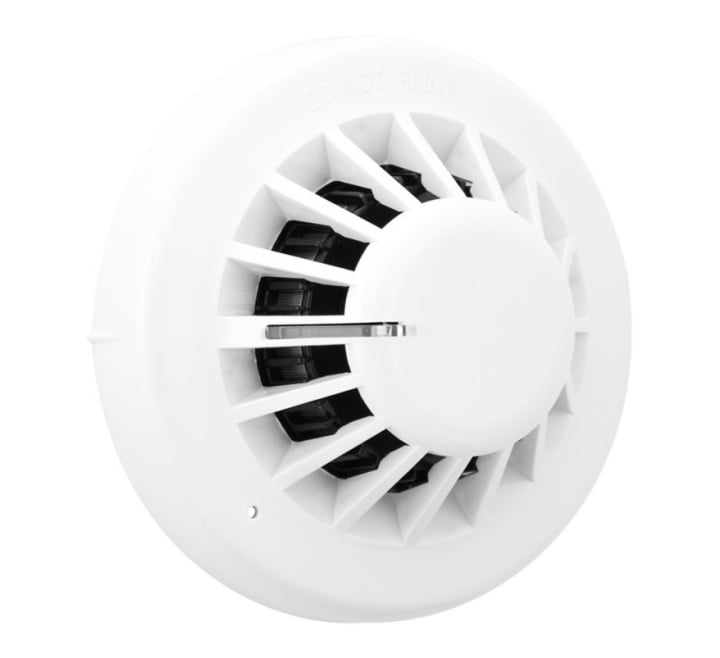

The Eaton FXN922 is a conventional multi-mode 5 in 1 mode detector. It’s quick and simple to install with a stylish low profile design. The detector is mounted on our standard conventional base (EFXN520). Each detector is fitted with a 360˚ viewable LED for indication.
This multi-mode detector can be configured to operate as either an optical detector, photo-thermal detector or 1 of 3 heat detector modes (rate of rise and 2 fixed heat models) using the four position switches located at the back of the detector. The FXN922 is certified for use in all 5 modes.
Key Features of the 400017FIRE-0031X |
|---|
|
> 360° visibility LED using lightpipe technology
> Drift compensation > Aesthetically pleasing > Quick and simple to install > Wide viewing angle for increased LED visibility > Positive “lock” indication > Discreet design for any decor > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | 400017FIRE-0031X |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Conventional 5 in 1 Multi-Mode Detector (FXN922)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Conventional 5 in 1 Multi-Mode Detector (FXN922)
| Product: | Eaton Conventional 5 in 1 Detector/Sensor |
| Catalogue no.: | 400017FIRE-0031X |
| Dimensions: | W:100mm x H:100mm x D:44mm |
| Type of test button: | n/a |
| Current supply primary: | Battery / accumulator |
| Back-up battery included: | None |
| Type of supply: |
DC |
| Supply voltage: | 15V -30V |
| Alarm current: |
.34 - 25 mA |
| Response temperature: |
60oC |
| Operating principle: |
Combination |
| Integrated function: |
Networkable via cable |
| Standby current: |
80 |
| System typology: | Conventional (Non-addressable) |
| Operating temperature: | -10oC to 80oC (93% RH) |
| Cable entry: | Rear |
| System wiring: | 0.5 - 2.5mm |
| Mounting method: | Surface, ceiling in open areas, suitable for duct mounting |
| Colour of housing: | White (RAL 9003) |
| IP Rating: | IP40 |
| Materials: | ABS |
| EN Certification standards: | EN54 Pt7 (Smoke Detector) EN54 Pt5 (Heat and Point Detectors) |
| Warranty: | 3 years |
| Weight: | 0.076kg |
