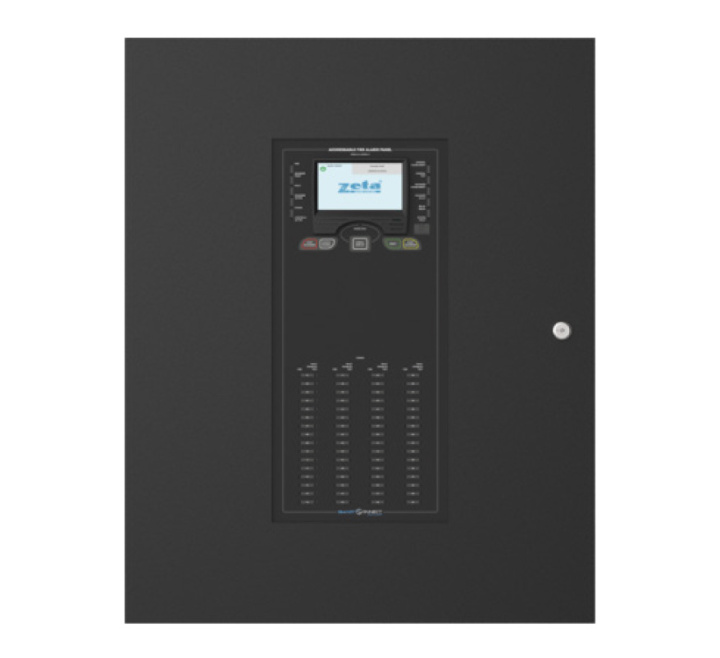

Zeta SmartConnect Multi-Loop Addressable Fire Panel (10 Module Ports) (SMART10/64)
SKU
SMART10/64
£1,395.72
£1,163.10
Zeta SmartConnect Multi-Loop Addressable Fire Panel (10 Module Ports) (SMART10/64)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta SmartConnect Multi-Loop Addressable Fire Panel (10 Module Ports) (SMART10/64)
The Zeta SMART10/64 Multi-loop is a powerful Analogue Addressable Fire Alarm Control Panel that offers a variety of modular components which allow it to meet a wide variety of applications.
The graphical touchscreen provides a user-friendly interface and the control panel has the capability to support complex cause and effect programming and a wide range of user-controllable functions, making the panel suitable for a range of projects from multi-site commercial developments to industrial applications.
It can operate as part of a networked system (up to 64 panels) or as a stand-alone panel. Powerful programming options allow configurable control over whether messages from specific panels are transmitted around the network or remain local.
Each system component has been designed to operate as part of a Smart Multi-loop EN54 listed system providing assurance that the detectors, interfaces, sounders and panel are all compatible with one other and that the full range of system functionality is supported by all devices.
Key Features of the SMART10/64 |
|---|
|
> Modular construction allows a panel to be specified using just the required modules
> Up to 6 loop card modules > 4.3” colour touch screen display > Capacity for up to 10 intelligent modules > Full system redundancy > Connection to TCP/IP Module > Extensive Day/Night mode programming > Full cause and effect programming via front panel or the Smart configurator PC software > 8032 event log entries > Using multiple zone monitor modules, the panel can be configured into a fully functioning conventional panel > 250 Fyreye MKII devices per loop > 254 addressable programmable zones > Up to 64 panel peer-to-peer network > Positive Alarm Sequence > Alarm Verification > Day/night (Building occupied/unoccupied) programming > Alarm circuit special application 24V mode > 400W Power Supply |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SMART10/64 |
| Product Series | Zeta Addressable |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | Black |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta SmartConnect Multi-Loop Addressable Fire Panel (10 Module Ports) (SMART10/64)
No questions yet. Be the first to ask the question!
Product Specification for Zeta SmartConnect Multi-Loop Addressable Fire Panel (10 Module Ports) (SMART10/64)
| Product code: |
SMART10/64 |
| Description: | Zeta SmartConnect 10 Modules, 64 Zonal LEDs Intelligent Addressable Control Panel |
| Dimensions: | W:535mm x H:665mm x D:200mm |
| Mains AC Supply voltage: |
230V AC (+10% / -15%) 120V AC (+10% / -15%) |
| Mains AC supply frequency: |
47 - 63 Hz |
| Power supply DC rating: |
30V DC, 400W |
| Battery voltage: |
24 VDC |
| Battery charge current: |
2.2A (max) |
| Battery capacity: |
2 x 38Ah, 12VDC sealed lead acid (max) |
| Alarm output: | 24VDC |
| Max. alarm circuit current: | 2 x 500mA (max) |
| Max. line impedance: | 3.6Ω (1.8Ω per core) |
| Wiring class: | Class B [Power limited & Supervised] |
| Special applications: | Auxiliary 24VDC Output [Power limited & Unsupervised] |
| DETECTION LOOP (SCM-LCM) | |
| Circuit voltage: | 28V + 9V Data (Nominal) |
| Max. loop current: | 450mA |
| Max loop capacity: | 250 Addresses |
| Max loop resistance: | 25Ω per core @ 200mA / 10Ω per core @ 450mA |
| Maximum Loop Capacitance: | 500nF |
| TERMINATION BOARD RELAY OUTPUTS | |
| Alarm: | (C,NO,NC) Contact rating: 125VAC @ 0.5A / 30VDC @ 1A |
| Fault: | Normally Energised (C,NO,NC) Contact rating: 125VAC @ 0.5A / 30VDC @ 1A |
| NETWORK | |
| Max. network size: | 64 nodes |
| Max. distance between nodes: |
1KM |
| SOFTWARE |
|
| Max. software zones: | 254 zones |
| Max. event log: | 8032 events |
| Software programming: | Touchscreen LCD or Smart Configurator PC software |
| DISPLAY | |
| LCD: | 4.3” Resistive touch screen. 480 x 272 pixel resolution |
| LED indicators: | 1 Red (1 x Alarm), 1 Green (Power), 10 Yellow (1 x Sounder Active, 1 x Sounder Fault, 1 x Fault, 1 x Relay Delay, 1 x Controls Active, 1 x General Disablement, 1 x General Test, 1 x Sounder Disablement, 1 x Sounder Delay, 1 x System Fault) |
| Button controls: | Stop Sounders, Silence Buzzer, Scroll Display, Reset, Start Sounders |
| ENCLOSURE | |
| Cable entries: | 38 |
| Max. module capacity: | 10 |
| Operating temperature: | -5 to +49oC |
| Max humidity: | 93% RH Non-Condensing |
| Standard: | EN54-2 & EN54-4 |
| Weight: | 15kg |
