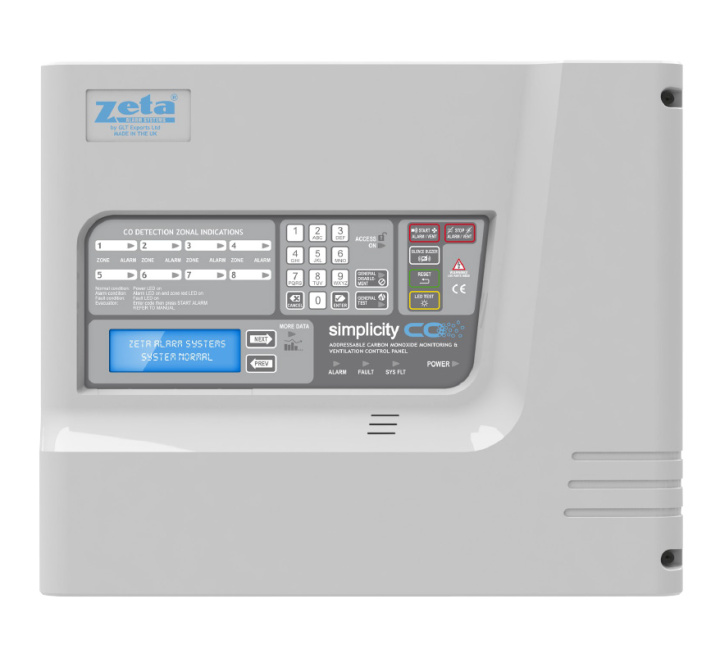

Zeta Simplicity CO 8 Zone Addressable Carbon Monoxide Panel (126 Devices) (S126/CO)
SKU
S126/CO
£562.55 £468.79
Zeta Simplicity CO 8 Zone Addressable Carbon Monoxide Panel (126 Devices) (S126/CO)
Product Details for Zeta Simplicity CO 8 Zone Addressable Carbon Monoxide Panel (126 Devices) (S126/CO)
The Zeta S126/CO Simplicity Carbon Monoxide Detection System is a self-conditioned controller with 8 zones supporting up to 126 devices. Each Zone will permanently display on the Liquid Crystal Display (LCD) the highest concentration of CO in that zone in PPM (Particles Per Million). This monitored value is updated every 10 seconds. The system will allow up to 2 interface modules (ZIOU/I-230) which are programmed to initiate a signal to Ventilation equipments to operate at pre-determined levels of concentration. Should the CO concentration keep rising while the Ventilation is still on, an alarm is raised at a pre-determined level.
Key Features of the S126/CO |
|---|
| > True analogue addressable system > Economical 2 wire installation > Can view the PPM reading of every detector > Each detector can be given a 20 character label to ease device identification (optional) > Loop of 32, 64 or 126 devices over 2, 4 or 8 zones (depending upon chosen panel version) > Continuously displays the maximum reading in each zone > Option for 2 ventilation relays per zone, for systems with 2 speed fans > Zonal or common ventilation options > Easy to use ventilation level selection > Battery backup enables the system to give an alarm warning in the case of mains power failure > System “programming” is determined by detector & relay address settings > Suitable for small and large installations > Designed & Manufactured in the UK > Meets latest low voltage directive > CE marked |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | S126/CO |
| Product Range / Series | Simplicity CO |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Number of Zones | 8 |
| Protocol Compatibility | Zeta MKII |
| Colour | Grey |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Simplicity CO 8 Zone Addressable Carbon Monoxide Panel (126 Devices) (S126/CO)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Simplicity CO 8 Zone Addressable Carbon Monoxide Panel (126 Devices) (S126/CO)
| Product no.: | S126/CO |
| Description: | Simplicity Carbon Monoxide Detection & Ventilation Panel |
| Enclosure size: | W:370mm x H:311mm x D:113mm |
| Capacity: | 126 devices |
| Zones: | 8 |
| Mains voltage: | 230 +/-10% VAC, 50-60 Hz |
| System voltage: | 24 Vdc + 9V Communication (Nominal) |
| Power supply: | 2 Amp PSU |
| Wiring: | 8 radials or 1 loop |
| Alarm output: | 2 x 150mA @ 24 VDC |
| Space for batteries: | Up to 2 x 7.0 AH SLA Batteries |
| Weight: | 4 kg |
