Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (SMART1)
SKU
SMART1
£677.04
£564.20
Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (SMART1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (SMART1)

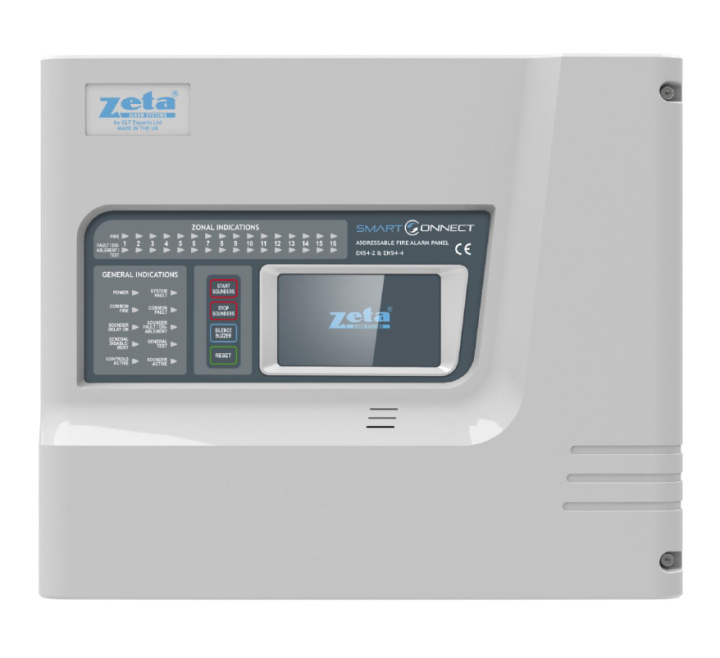

The Zeta SMART1 SmartConnect is a fully featured single loop, addressable fire alarm panel with a user friendly 4.3 inch touch screen display and remote monitoring via a desktop PC or smartphone via the cloud.
The panel is housed in a flame-retardant ABS enclosure, utilising a switch mode power supply. A fully removable front cover improves ease of access for cable installations. Up to 16 panels can be networked (pier to pier) with no additional network cards.
Key Features of the SMART1 |
|---|
|
> 4.3 inch colour touch screen display
> Remote monitoring via a desktop PC/ Smartphone via the Cloud > Easy to use configuration software > Cause & effect programming via front panel or PC > 250 Zeta MKII protocol devices per loop > 250 available zones, 16 with LED indication > Built-in TCP-IP output > Up to 8 password protected users > Meets all requirements of latest EN54 parts 2 & 4 > Extensive Day/Night mode programming > Built-in network facility > 2 programmable local inputs > 2 sounder circuits > Fire & fault relays |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | SMART1 |
| Product Series | Zeta Addressable |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Protocol Compatibility | Zeta MKII |
| Colour | Grey |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (SMART1)
No questions yet. Be the first to ask the question!
Product Specification for Zeta SmartConnect Touchscreen 1 Loop Addressable Fire Alarm Panel (SMART1)
| Product code: |
Smart1 |
| Description: | Zeta Smart Connect Touch Screen 1 Loop Addressable Fire Alarm Panel |
| Dimensions: | W:370mm x H: 311mm x D:113mm |
| Mains voltage: |
230V AC +10% / -15% @ 50/60 Hz |
| System voltage: | 24V DC (Nominal) |
| Loop current: | 500mA |
| Sounder alarm output: | 2 x 200mA @ 24V DC |
| Fault relay: | 1 x Volt Free Relay, SELV @ 1A Max |
| Loop capacity: | 250 MKII devices |
| Charger voltage: | 27.6V |
| Battery cut off: | Battery voltage less than 20V |
| Battery internal resistance limit: | 2.0 ohm |
| Maximum battery space: | 2 x 7.0 Ah, 12 Vdc sealed lead acid |
| IP Rating: | IP30 |
| Weight: | 3.5kg |
