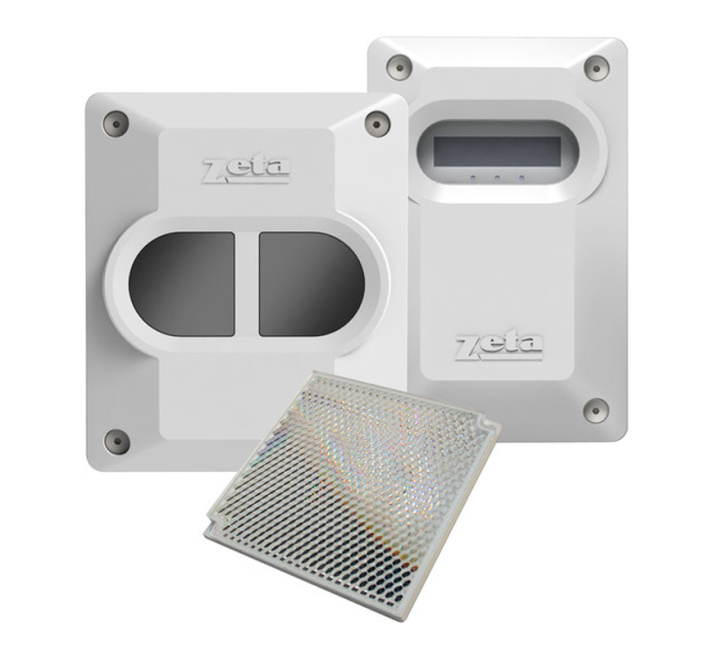

Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)
SKU
ZT-BEAM/XTRA
£546.00
£455.00
Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)
The Zeta ZT-BEAM/XTRA has been developed to overcome the problems of outdated technology in beam detection. Building movement and accessibility have, in the past, made beam detection unreliable but by using updated motorised technology of the Zeta Beam Xtra, unreliability is no longer a problem. Self aligns to the centre of the reflector when commissioning and will automatically keep alignment with the reflector when building movement occurs. This means less false alarms.
Key Features of the ZT-BEAM/XTRA |
|---|
|
> Can be made addressable by using an IO unit
> Motorised head unit > Controller unit (mounted at low level) > Designed to comply with EN54 part 12 > Compatible with most major fire panels > Very low power consumption > Uses only 3mA at all times > Vds Approved |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZT-BEAM/XTRA |
| Product Series | Zeta Conventional |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | IR Optical Beam |
| Detectable Medium | Smoke |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)
No questions yet. Be the first to ask the question!
Product Specification for Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)
| Product code: |
ZT-BEAM/XTRA |
| Description: | Zeta 7-70 Metres (Includes Controller and 1 Reflector) - Addressable needs IO unit |
| Size: | Head: W:155mm x H:180mm x 137mm Controller: W:120mm x H:185mm x D:62mm |
| Supply voltage: |
10 - 30 VDC |
| Supply current: |
3.5mA (constant current) in all operational states |
| Constant current: |
17mA (constant current) in fast commissioning |
| Optical wavelength: |
870mm |
| Max. angular alignment: |
±5° |
| Maximum Angular Misalignment: | (Static not auto-aligning) Beam Head ±0.75° Reflector ±2° |
| Protection Range: | 7 - 70m |
| Alarm sensitivity levels: | 25%(1.25dB) to 50%(3dB) in 1%(0.05dB) increments (default 35% (1.87dB)) |
| Alarm condition: | Obscuration drops to below pre-defined sensitivity level. Time to Alarm Condition adjustable 2 to 30 seconds in 1 second increments (default 10 seconds) |
| Alarm indication: | Controller Status - FIRE Controller Red Flashing LED Head Red Flashing LED Alarm Relay Change Over (CO) contact Rating 2A @ 30 VDC |
| Test/reset features: | Beam test function by controller. Alarm latching/auto-reset selectable (default auto-reset) Alarm reset in latching mode by controller reset function, removing power for >5 seconds, apply 12 to 24 VDC to reset connections in Beam Head. |
| Fault Sensitivity Level: | 90% |
| Fault condition: | Obscuration drops to below the fault sensitivity level within 1 second Power Down or Supply Voltage < 9 VDC Commissioning modes, Pre-Alignment and Auto Alignment Beam turned off during Beam Maintenance Time to Fault Condition adjustable, 2 to 60 seconds in 1 second increments (default 10 seconds) |
| Fault Indication: | Controller Status – FAULT Controller Yellow Flashing LED 1 Second Head Yellow Flashing LED 1 Second Fault Relay Change Over (CO) Contact Rating 2A @ 30 VDC |
| Normal Condition: | Obscuration level is above the Alarm sensitivity level Controller Status – NORMAL Controller Green Flashing LED Programmable on/off Head Green Flashing LED Programmable on/off |
| Auto-align /Beam Contamination Compensation: | Auto-align during normal operation if obscuration drops below 90% for the duration of the align time set (doesn’t effect normal operating mode) Beam Contamination Compensation 4 hour monitoring. Compensation data available at the controller |
| Operating temperature: | -10°C to 55°C |
| Humidity: |
10 to 95% RH Non-condensing |
| IP Rating: | IP65 when suitably mounted and terminated |
| Weight: |
Head: 1.1kg Controller: 0.55kg |
