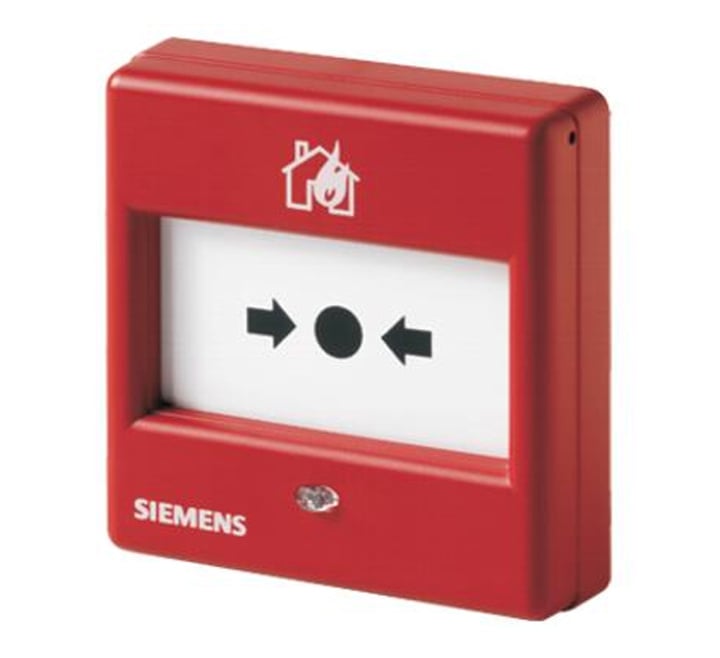

Siemens FDM365-RP Cerberus 360 Manual Call Point (Red) (No backbox) (S54311-F111-A1)
SKU
S54311-F111-A1
£35.70
£29.75
Siemens FDM365-RP Cerberus 360 Manual Call Point (Red) (No backbox) (S54311-F111-A1)
In Stock
Product Details for Siemens FDM365-RP Cerberus 360 Manual Call Point (Red) (No backbox) (S54311-F111-A1)
The Siemens FDM365-RP manual call point is designed for immediate manual actuation of a fire alarm. For indoor applications. Direct alarm actuation by pushing on the plastic element. The pushbutton is reset with the key and the device is ready for operation again. For surface- and recess-mounted feed lines in easily accessible places.
For surface mounting, one of the FDMH295-x back boxes must be ordered separately.
Key Features of the S54311-F111-A1 |
|---|
|
> Manual call point for the addressed fire detection system Cerberus FIT FC360
> Direct activation: type 'A' according to EN 54-11 > Communication via C-NET detector line (addressed individually) > For surface and recessed mounting (surface back box sold separately) > With resettable plastic insert > Two-wire installation for all cable types > Integrated line separator: The defective part on the detector line is located via the fire control panel and isolated between two C-NET devices > Built-in alarm indicator (LED) > Address automatically issued during commissioning > Protected electronic components > Connection terminal DBZ1190‑AB (accessory) can be mounted if shielded cables are used > This device is functional exclusively together with a Cerberus FIT fire control panel FC360 |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM365-RP |
| Product Series | Cerberus 360 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM365-RP Cerberus 360 Manual Call Point (Red) (No backbox) (S54311-F111-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM365-RP Cerberus 360 Manual Call Point (Red) (No backbox) (S54311-F111-A1)
| Operating voltage | DC 12…33 V |
| Operating temperature | -25…70 °C |
| Protection category | IP44 |
| Relative humidity | ≤95 % rel. (no condensation) |
| Standard | EN 54-11 , EN 54-17 |
| Dimensions (W x H x D) | 87 x 87 x 20 mm |
| Quiescent current | 180 μA |
| Storage temperature | -30...+75 °C |
| Terminal block | 0,28…1,5 mm2 |
| Communication protocol | C-NET |
| Color | Flame red, ~RAL 3000 |
| System compatibility | C-NET -> FC360 |
| Number of addresses | 1 |
