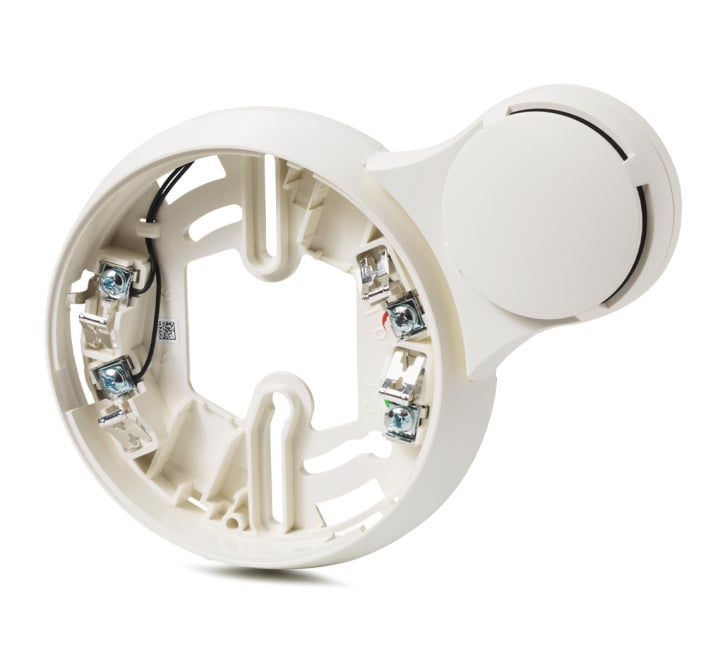

Siemens DBS720 Cerberus Addressable 80-88dB Sounder Base (S54319-F5-A1)
In Stock
Product Details for Siemens DBS720 Cerberus Addressable 80-88dB Sounder Base (S54319-F5-A1)
Compatible with all point detectors of the series Cerberus PRO and Cerberus FIT FC360.
The Siemens sounder base DBS720 and the detector compose a single unit, which already has a base and is mounted on ceilings, e.g. in hotel rooms, hospitals or nursing homes.
The sounder base serves for acoustic alarming in the addressed FS720 fire detection system. The sounder base can be allocated freely from the fire control panel to activate as required. It is not dependent upon an alarm signal from its associated detector.
Synchronized with all other alarm sounders and sounder beacon devices in the same detector line (C-NET).
No auxiliary power supply required; power is supplied via C-NET.
For recess supply wiring. For surface supply wiring, remove the corresponding breakouts for cable diameter up to max. Ø 8 mm.
Key Features of the S54319-F5-A1 |
|---|
|
> 80-88dB sounder base
> Works with Siemens addressable point detectors > Includes an integral detector base > For Cerberus PRO & FC360 detectors |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | DBS720 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
FAQ’s for Siemens DBS720 Cerberus Addressable 80-88dB Sounder Base (S54319-F5-A1)
Product Specification for Siemens DBS720 Cerberus Addressable 80-88dB Sounder Base (S54319-F5-A1)
| Standard | EN 54-3 |
| Protection category | IP40; IP42 with detector base seal |
| Operating voltage | DC 12…33 V |
| Operating temperature | -25…70 °C |
| Storage temperature | -30...+70 °C |
| Sound intensity | 80…88 dB (A) |
| Cable capacity | 0.2...1.6 mm2 |
| Quiescent current | 150 µA |
| Alarm current | 1.2 mA |
| Number of tones | 11 |
| Ext. alarm indicator | 2 |
| System compatibility | C-NET -> FC360 & FS720 |
| Communication protocol | C-NET |
| Relative humidity | ≤95 % rel. |
| Permissible air speed | 5 m/s |
| Dimensions (W x H) | 175 x 117 x 29 mm |
| Color | Pure white, ~RAL 9010 |
