Siemens OP720-B Cerberus PRO Optical Smoke Detector (Black) (S54310-F1-A2)
SKU
S54310-F1-A2
£57.26
£47.72
Siemens OP720-B Cerberus PRO Optical Smoke Detector (Black) (S54310-F1-A2)
In Stock
Product Details for Siemens OP720-B Cerberus PRO Optical Smoke Detector (Black) (S54310-F1-A2)
Siemens OP720-B Optical Smoke Detector, Jet Black, c/w Dustcap (Requires Base) for the detection of smoke-generating flaming and smouldering fires.
Works according to the scattered-light principle with an optical forward scattering sensor. Selectable detection behaviour by different parameter sets.
The base must be ordered separately.
Key Features of the S54310-F1-A2 |
|---|
|
> Jet Black (RAL9005) point detector

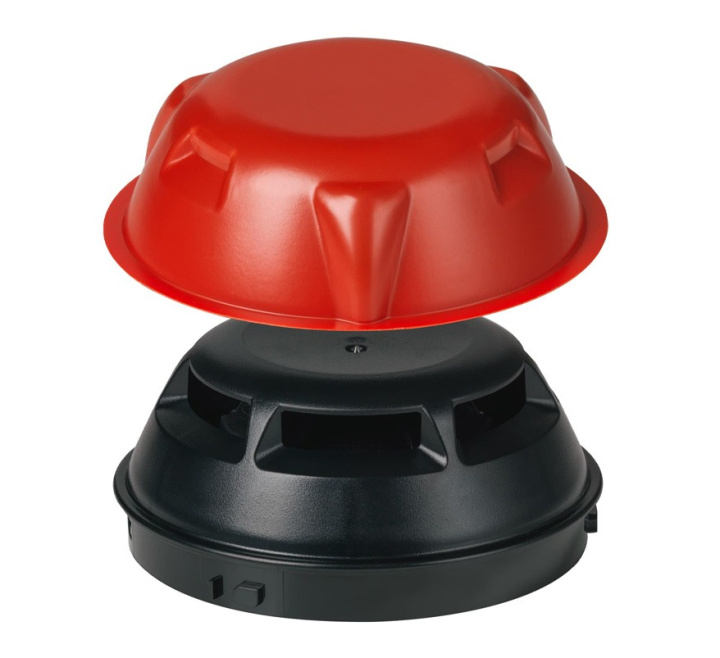

> Detector dust cap to protect the point detector during the construction phase > Functions according to the scattered light principle with one sensor, optical forward scattering > Opto-electronic measuring chamber which obstructs disruptive extraneous light but provides excellent detection of smoke particles > Selectable detection behaviour thanks to two parameter sets – Parameter set 1: 'Standard', Parameter set 2: 'Sensitive' > For detection of smoke-generating flaming fires and smouldering fires |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | OP720-B |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | Black |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens OP720-B Cerberus PRO Optical Smoke Detector (Black) (S54310-F1-A2)
No questions yet. Be the first to ask the question!
Product Specification for Siemens OP720-B Cerberus PRO Optical Smoke Detector (Black) (S54310-F1-A2)
| Product: | Siemens Optical Smoke Detector |
| Product code: | S54310-F1-A1 |
| Operating voltage: | DC12 - 33V |
| Standard: | EN 54-7 , EN 54-17 |
| Operating temperature: |
-10 to +55 °C |
| Protection category: | IP40; IP42 with detector base seal |
| Storage temperature: |
-30 to +70 °C |
| Relative humidity: | ≤95 % rel. |
| Permissible air speed: | 5 m/s |
| System compatibility: | C-NET -> FS720 |
| Communication protocol: | C-NET |
| Colour: |
Jet Black RAL 9005 |
| Quiescent current: |
~220 μA
|
| Ext. alarm indicator: |
2
|
