Siemens DBS729 Cerberus PRO 80-99dB Sounder Interbase VID (Requires Detector Base DB721) (S54372-F14-A1)
SKU
S54372-F14-A1
£105.55
£87.96
Siemens DBS729 Cerberus PRO 80-99dB Sounder Interbase VID (Requires Detector Base DB721) (S54372-F14-A1)
Limited Stock
Product Details for Siemens DBS729 Cerberus PRO 80-99dB Sounder Interbase VID (Requires Detector Base DB721) (S54372-F14-A1)

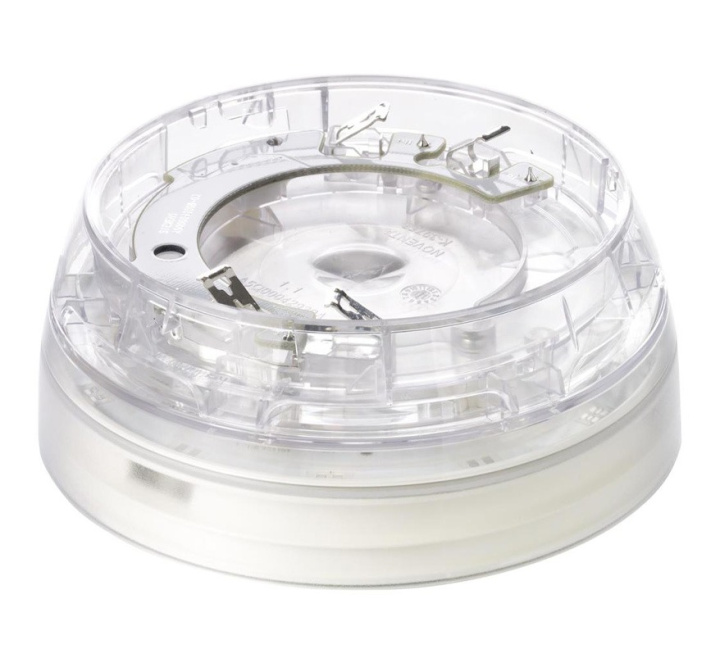

The Siemens Sounder Interbase VID DBS729 and Detector comprise a single unit with base for mounting on ceilings, e.g. in hotel rooms, hospitals and nursing homes.
The sounder interbase is used for acoustic alarming. In case of a fire alarm, the base triggers an acoustic signal. The configuration of the interbase DBS729 allows an alarming in the addressed FS720 fire detection system. Sound level and luminous intensity are adjustable, sounds are synchronized with all alarm devices.
For all point detectors in the series Cerberus PRO FD720.
No auxiliary power supply required; power is supplied via C-NET. For recess mounting. For surface mounting, cable diameter up to 8 mm.
Key Features of the S54372-F14-A1 |
|---|
|
> In event of alarm the sounder interbase with supplementary optical indication emits both an acoustic and optical alarm signal (red LEDs flashing)
> Red LEDs have adjustable luminous intensities – 3 programmable levels > 11 tones to choose from, 2 programmable alarm levels > Adjustable sound levels up to 89 dBA > For recess mounting > For surface mounting, cable diameter up to 8mm > Addressed (C-NET) > Adjustable sound levels up to 89 dBA > Compatible with all addressable Cerberus point detectors > Supply and communication via C-NET, no auxiliary supply required > Integrated line separator > Protected electronics and high-quality components > Eco- and environmentally friendly > If a point detector is not used, then cover plate BP720 (accessory) can be mounted > For use in hotel rooms, restrooms and offices |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | DBS729 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens DBS729 Cerberus PRO 80-99dB Sounder Interbase VID (Requires Detector Base DB721) (S54372-F14-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens DBS729 Cerberus PRO 80-99dB Sounder Interbase VID (Requires Detector Base DB721) (S54372-F14-A1)
| Product: | Siemens DBS729 Sounder Interbase with Supplementary Optical Indication |
| Product code: | S54372-F14-A1 |
| Dimensions: | Diameter:127mm x H:52mm |
| Standard: | EN 54-3, type A , EN 54-17 |
| Protection category: | IP21C with interbase seal and point detector; IP21C with interbase seal and blanking plate |
| Operating voltage: | 12 - 33V DC |
| Operating temperature: | -25 to 65 °C |
| Storage temperature: | -30 to +75 °C |
| No. of sounds | 13 |
| Quiescent current: | 250 μA |
| Relative humidity: | ≤95 % rel. |
| Sound intensity: | 80 to 87 dB (A) |
| Light intensity: | 1.27 - 3.2 cd |
| Communication protocol: | C-NET |
| System compatibility: | FC720 |
| Cable capacity: | 0.2 - 1.6mm2 |
| Colour: |
Pure white (RAL9010) / Translucent |
| Weight: | 0.236 kg |
