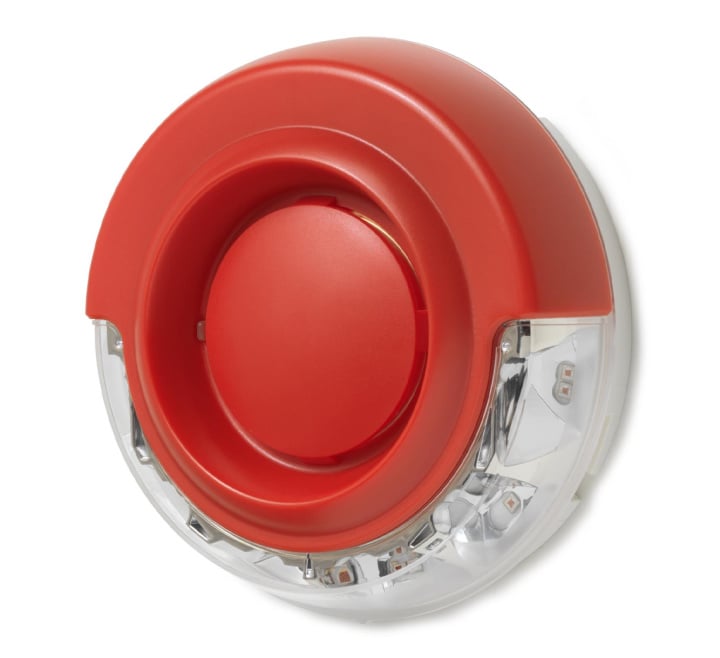

Siemens FDS366-RR Cerberus 360 Red Wall Sounder Beacon with Red LED (No mounting base)
SKU
S54364-F105-A1
£71.41 £59.51
The Siemens FDS366-RR provides an alarm in an addressed fire detection system (Cerberus 360 panels only) and activates an acoustic and optical alarm signal in the event of a fire alarm. It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The tones and the luminous intensity are adjustable, the devices are synchronized.
- Buy 10 for £70.32 £58.60 each and save 2%
- Buy 20 for £69.22 £57.68 each and save 3%
- Buy 50 for £68.12 £56.77 each and save 5%
The Siemens FDS366-RR provides an alarm in an addressed fire detection system (Cerberus 360 panels only) and activates an acoustic and optical alarm signal in the event of a fire alarm. It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The tones and the luminous intensity are adjustable, the devices are synchronized.
Each device has 16 tones ex-factory. All devices have their own device addresses and can be configured independently of each other. The devices are available with red or white flashing LEDs.
Supply and communication via C-NET, no auxiliary power needed. The device automatically monitors its beacon and acoustic function.
The base must be ordered separately.
| Key Features |
|---|
| > Addressed (C‑NET) > Meets the requirements of the EN 54‑3 (sounder) and EN 54-23 (beacon) standards > Supply and communication via C‑NET > Max. 16 tones to choose from, 2 programmable events: 'Warning (ALERT)' and 'Evacuation (EVAC)' > Sound levels up to max. 99 dBA > Integrated line separator > The device automatically monitors its beacon and acoustic function > Tool-free connection to the detector line. Possible conductor cross-sections to 2.5 mm2 > Max. protection category achievable: IP65 for use with base deep FDB227‑x and M20 x 1.5 metal cable gland with M20 x 1.5 counter nut > Synchronization of acoustic signals > Protected electronics and high-quality components > This device is functional exclusively together with a Cerberus FIT fire control panel FC360 |
| Manufacturer | Siemens |
|---|---|
| MPN | FDS366-RR |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Standard | EN 54-3 , EN 54-23 , EN 54-17 |
| Protection category | IP33C; IP65 with base deep |
| Operating voltage | DC 16…33 V |
| Operating temperature | -25…70 °C |
| Operating current | 4…20 mA (tone and beacon activated) |
| Number of sounds | 16 |
| Storage temperature | -30...+75 °C |
| Quiescent current | 400 μA |
| Relative humidity | ≤95 % rel. |
| Sound intensity | 75…99 dB (A) |
| Light intensity | Medium = W-2.4-7.5 Indicator |
| Cable capacity | 0.2…2.5 mm2 |
| Communication protocol | C-NET |
| System compatibility | C-NET -> FC360 |
| Dimensions (W x H) | 116 x 42.7 mm |
| Color | Flame red, ~RAL 3000 |
| Number of addresses | 1 |
