Siemens HI720 Cerberus PRO Heat Detector (Static + RoR) (S54310-F4-A1)
SKU
S54310-F4-A1
£31.09
£25.91
Siemens HI720 Cerberus PRO Heat Detector (Static + RoR) (S54310-F4-A1)
In Stock
Product Details for Siemens HI720 Cerberus PRO Heat Detector (Static + RoR) (S54310-F4-A1)
The Siemens HI720 is for use in areas where smoke detection is impractical due to high level of dust, dirt, steam and high humidity. Selectable parameter sets for rate of rise and fixed temperature.
The base must be ordered separately.
Key Features of the S54310-F4-A1 |
|---|
|
> Point detector with one heat sensor

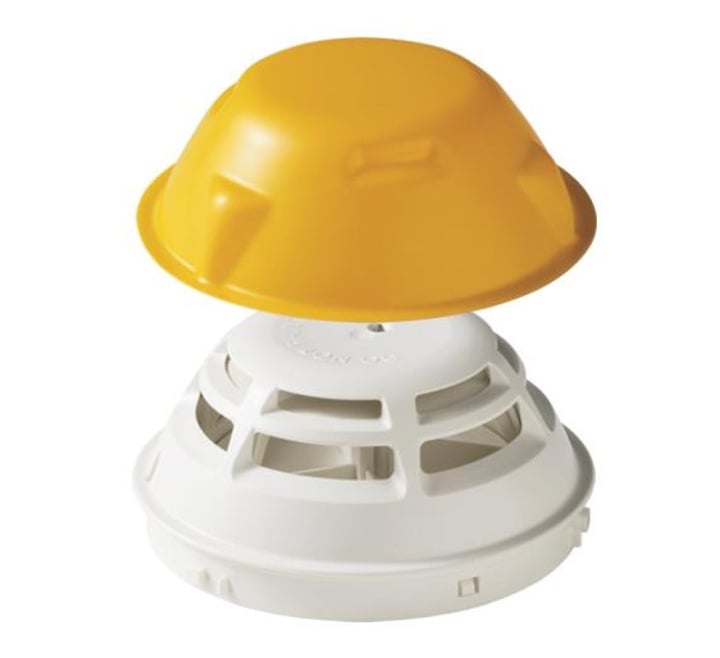

> Detector dust cap to protect the point detector during the construction phase > For high requirements > Reliable response behaviour for slow and rapid temperature rises, plus reliable response behaviour for low temperatures > Selectable detection behaviour thanks to two parameter sets, Parameter set 1: 'A2S' & Parameter set 2: 'A2R' > Suitable for rooms with a fluctuating operating temperature > Where significant dust or dirt deposits or high moisture levels could impair the operation of standard detectors |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | HI720 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens HI720 Cerberus PRO Heat Detector (Static + RoR) (S54310-F4-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens HI720 Cerberus PRO Heat Detector (Static + RoR) (S54310-F4-A1)
| Product: | Siemens RoR/Fixed temperature Heat Detector with dustcap |
| Product code: | S54310-F4-A1 |
| Standard: | EN 54-5 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating temperature: |
-10 to 55 °C |
| Storage temperature: |
-30 to 70 °C |
| Quiescent current: | 200 μA |
| Ext. alarm indicator: | 2 |
| System compatibility: | C-NET -> FS720 |
| Communication protocol: |
C-NET
|
| Protection category: | IP40; IP42 with detector base seal |
| Relative humidity: | ≤95 % rel. |
| Colour housing/cover: | Pure white, ~RAL 9010 |
