Eaton Cooper Intelligent Addressable Optical Smoke Detector (CAP320)
SKU
400002FIRE-0002X
£35.92
£29.93
Eaton Cooper Intelligent Addressable Optical Smoke Detector (CAP320)
- Buy 10 for £35.08 £29.23 each and save 2%
In Stock
Product Details for Eaton Cooper Intelligent Addressable Optical Smoke Detector (CAP320)

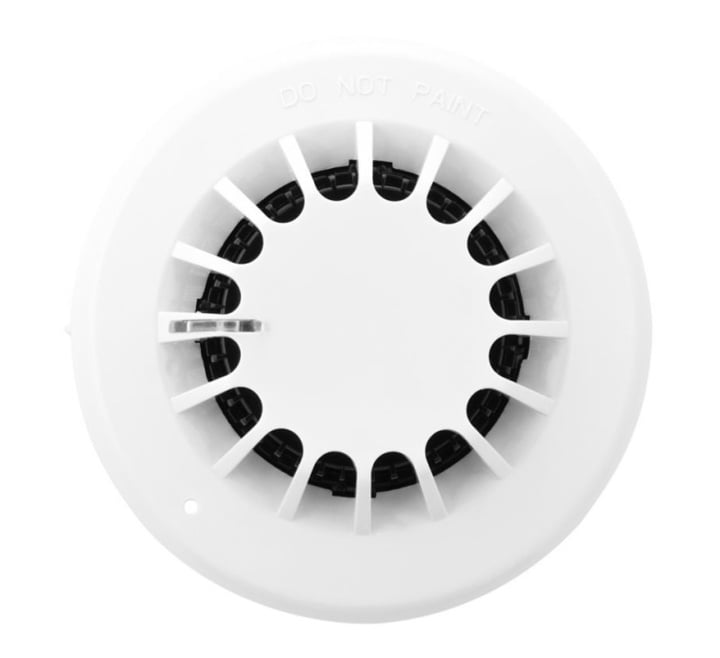

The Eaton Cooper CAP320 Addressable Optical Smoke Detector is suitable for most applications giving the fastest response to slow-burning or smouldering fires which give rise to large visible smoke particles.
This range of intelligent addressable sensors have been specifically designed to operate with Eaton’s intelligent addressable fire systems.
All sensors are third-party approved to the relevant section of EN54 (part 7 for smoke detectors, part 5 for heat detectors and part 17 for short circuit isolators).
Key Features of the 400002FIRE-0002X |
|---|
|
> Soft addressed
> White > Integral short circuit isolator > Single address > 360° visibility LED using lightpipe technology > Drift compensation > Aesthetically pleasing > Quick and simple to install > Wide viewing angle for increased LED visibility > Common mounting base > Positive “lock” indication > Discreet design for any decor > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CAP320 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable Optical Smoke Detector (CAP320)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable Optical Smoke Detector (CAP320)
| Product: | Eaton Addressable Optical Smoke Sensor |
| Catalogue no.: | 400002FIRE-0002X |
| Dimensions: | Dia:100mm x D:34mm |
| Current supply primary: | Battery / accumulator |
| Voltage: | 18 - 30V dc |
| Alarm current: | 5mA max. |
| Integrated function: |
Networkable via cable, VdS accepted |
| Operating principle: | Optic |
| Back-up battery included: | None |
| Standby current: | 220 |
| System wiring: |
1.5mm |
| System typology: |
Addressable, soft addressing |
| Mounting method: |
Surface, Ceiling in open area. Suitable for duct mounting |
| Type of test/pause button: | Not applicable |
| Cable entry: |
Rear |
| Max. no. networkable: | 200 |
| Operating temperature: | -10oC to +60oC (95% max humidity, non condensing) |
| Construction: | ABS |
| Colour: | White (akin RAL9003) |
| IP rating: | IP40 |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt7 (Smoke Detector) |
| Warranty: | 3 years |
| Weight: | 0.076 kg |
