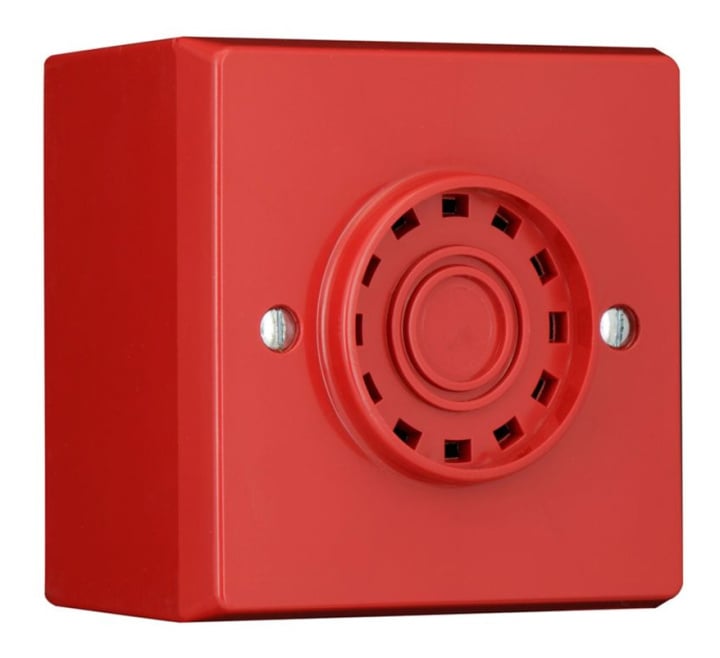

Eaton Fulleon Askari Compact Sounder - Red Base (AC/SV/R/S/BB)
SKU
550068FULL-0142X
£17.72
£14.77
Askari Compact sounder, Red base, VdS approved (AC/SV/R/S/BB VDS G206025 E12)
- Buy 10 for £17.32 £14.43 each and save 2%
In Stock
Product Details for Eaton Fulleon Askari Compact Sounder - Red Base (AC/SV/R/S/BB)
The Askari Compact is a discrete sounder for flush or surface fixing. The innovative design provides an excellent combination of high sound output and attractive aesthetics, ideal for retail, hotel and residential applications.
Communicate through crystal clear sound
For situations requiring a discreet and lower volume Fire alarm sounder, such as bedrooms and quiet areas, but with the range of voltages and 32 tones (6 fire certified) expected from Eaton, the Askari compact ensures clear audible notification.
A fire sounder that's designed for ease of installation
The Askari Compact fire sounder offers the choice of a surface mount with supplied backbox, or flush mount into a British Standard 60.3mm back box. Its discreet design makes it suitable for almost any application where a sounder is a requirement.
Key Features of the 550068FULL-0142X |
|---|
|
> 32 tones (user selectable)
> Red base > VdS approved > Automatic synchronisation > Two stage alarm > Discrete design > 6 tones certified for fire use > Improved tone clarity, reducing confusion > Alert and alarm function > Can be flush or surface fixed |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | 550068FULL-0142X |
Write Your Own Review
FAQ’s for Eaton Fulleon Askari Compact Sounder - Red Base (AC/SV/R/S/BB)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Fulleon Askari Compact Sounder - Red Base (AC/SV/R/S/BB)
| Product name: | Eaton Askari Compact Alarm Sounder |
| Dimensions: | W:86mm x H: 86mm x D:52mm |
| Catalogue No.: | 550068FULL-0142X |
| EN Certified Tones: |
6 |
| EN Certification standards: | EN54 Pt 3 (Fire Alarm Sounders) |
| No. of tones: | 32 |
| Addressing mode: | Hard addressing |
| Cable entry: |
Rear |
| Alarm current: |
35 mA |
| Voice tones: |
No |
| System topology: |
Conventional (Non-addressable) |
| Electricity consumption: |
.035A |
| Material: |
Construction: ABS/FR Housing: Plastic |
| Sound output: |
97 dB |
| Nominal voltage: |
24V |
| Type of current: |
DC |
| System wiring: |
0.28 - 2.5mm |
| Ingress protection: | IP21 |
| Operating temp: | -10oC to 55oC |
| Humidity (non condensing): |
95% max, 0% min. |
| Colour: | Red |
| Weight: | 110g |
