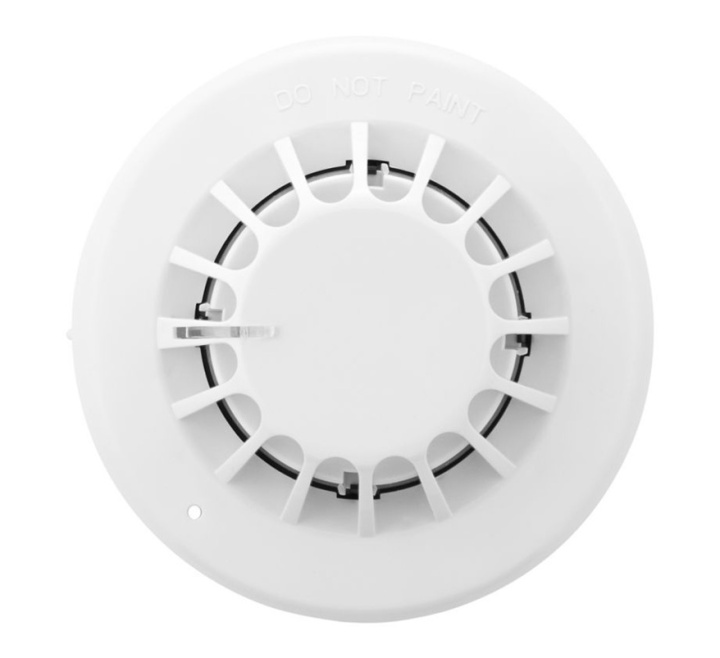

Eaton Cooper Intelligent Addressable Multi-Mode Heat Detector (CAH330)
SKU
400003FIRE-0003X
£35.88
£29.90
Eaton Cooper Intelligent Addressable Multi-Mode Heat Detector (CAH330)
- Buy 10 for £35.04 £29.20 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Eaton Cooper Intelligent Addressable Multi-Mode Heat Detector (CAH330)
The Eaton Cooper CAH330 Addressable Multi-Mode Heat Detector can be set to one of 3 modes 77ºC / 92ºC and rate of rise. These sensors are designed to be used in environments where the ambient conditions might cause false alarms if smoke detection were to be used, for example where there is a high level of dust, fumes, steam or smoke under normal conditions.
This range of intelligent addressable sensors have been specifically designed to operate with Eaton’s intelligent addressable fire systems.
All sensors are third party approved to the relevant section of EN54 (part 7 for smoke detectors, part 5 for heat detectors and part 17 for short circuit isolators).
Key Features of the 400003FIRE-0003X |
|---|
|
> Soft addressed
> Integral short circuit isolator > Single address > 360° visibility LED using lightpipe technology > Drift compensation > Aesthetically pleasing > Quick and simple to install > Wide viewing angle for increased LED visibility > Common mounting base > Positive “lock” indication > Discreet design for any decor > Easy to maintain/service |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CAH330 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable Multi-Mode Heat Detector (CAH330)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable Multi-Mode Heat Detector (CAH330)
| Product: | Eaton Addressable Multi-mode Heat Sensor |
| Catalogue no.: | 400003FIRE-0003X |
| Dimensions: | Dia:100mm x D:44mm |
| Current supply primary: | Battery / accumulator |
| Voltage: | 18 - 30V dc |
| Alarm current: | 5mA max. |
| Integrated function: |
Networkable via cable, VdS accepted |
| Operating principle: | Thermo maximal |
| Back-up battery included: | None |
| Standby current: | 220 |
| System wiring: |
1.5mm |
| System typology: |
Addressable, soft addressing |
| Mounting method: |
Surface, Ceiling in open area. Suitable for duct mounting |
| Type of test/pause button: | Not applicable |
| Cable entry: |
Rear |
| Max. no. networkable: | 200 |
| Operating temperature: | -10oC to +60oC (95% max humidity, non condensing) |
| Response temperature: | 60oC |
| Construction: | ABS |
| Colour: | White (akin RAL9003) |
| IP rating: | IP40 |
| EN Certification standards: | EN54 Pt17 (Short Circuit Isolator) EN54 Pt5 (Heat & Point Detectors) |
| Warranty: | 3 years |
| Weight: | 0.076 kg |
