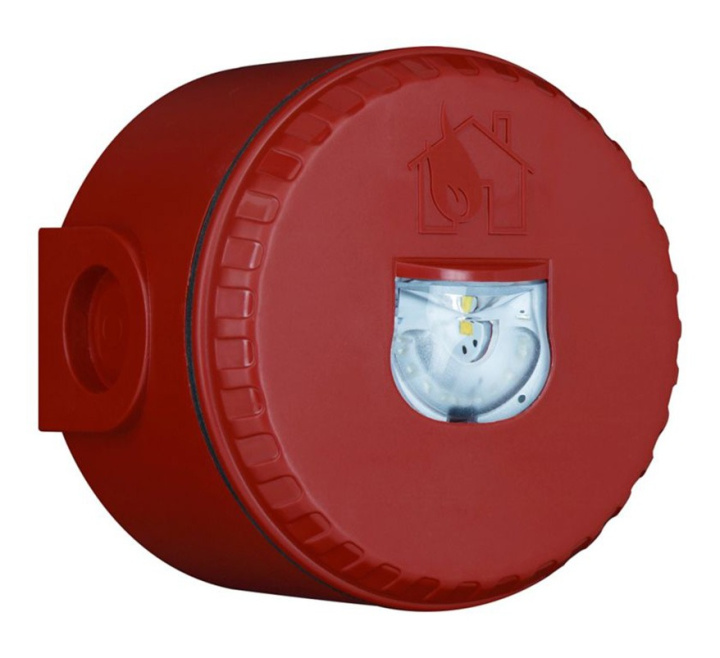

Eaton Cooper Intelligent Addressable Wall VAD (Red Flash, Deep Base) (CAB482WD)
SKU
CAB482WD
£54.58
£45.48
Eaton Cooper Intelligent Addressable Wall VAD (Red Flash, Deep Base) (CAB482WD)
- Buy 10 for £53.29 £44.41 each and save 2%
In Stock
Product Details for Eaton Cooper Intelligent Addressable Wall VAD (Red Flash, Deep Base) (CAB482WD)
The Eaton CAB482WD is a low-profile, low-current solution to the latest EN 54-23 fire standard.
A stylish, intelligent addressable fire alarm beacon, the visual alarm device (VAD) is for wall mounting and suitable for a variety of applications. It is available in a red body and compatible with a range of bases.
The VAD utilises Eaton’s patented lens design that distributes light that efficiently. A weatherproof alternative with an IP66 ingress protection rating, making it suitable for wet and outdoor environments, is available.
Key Features of the CAB482WD |
|---|
|
> Soft addressed
> Deep base > Red housing > Red flash > Compliant to the latest standards (EN 54-23) > Ultra-low current consumption > Coverage switch - 7.5m to 2.5m > Flash rate switch from 1Hz to 0.5Hz reduces power consumption by up to 50% > Attractive, discrete design suitable for public places |
| Brand | Eaton |
|---|---|
| Manufacturer Part No. | CAB482WD |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Eaton |
| Colour | Red |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Eaton Cooper Intelligent Addressable Wall VAD (Red Flash, Deep Base) (CAB482WD)
No questions yet. Be the first to ask the question!
Product Specification for Eaton Cooper Intelligent Addressable Wall VAD (Red Flash, Deep Base) (CAB482WD)
| Product: | Eaton Addressable Wall VAD, Deep base |
| Catalogue no.: | CAB482WD |
| Dimensions: | W:93mm x H:93mm x D:67mm |
| Operating current: | 12.5-45mA (depending on setting & LED colour) |
| Standby current: | <330μA |
| Mounting height (x): |
2.4m |
| Coverage (y): |
7.5m (switchable 2.48m) |
| Coverage volume (c-x-y): | C-2.4 - 7.5 |
| Flash rate: | 0.5 Hz (Switchable to 1Hz) |
| Flash colour: | Red LED |
| Operating temperature: |
-25oC to +70oC |
| IP rating: | IP65 |
| System typology: | Addressable |
| Material: | PC/ABS |
| Light colour: | Red |
| Colour housing: | Red |
| Mounting: | Surface, Wall |
