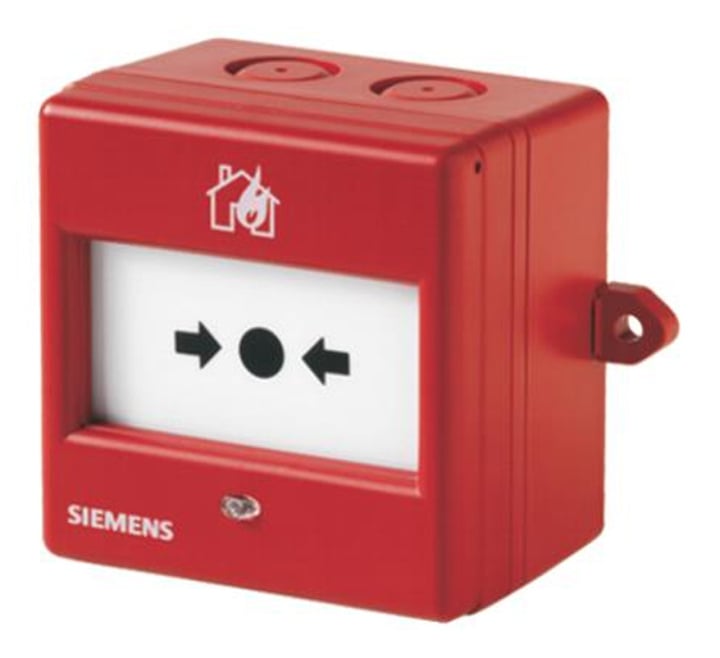

Siemens FDM226-RP Cerberus PRO IP66 Weatherproof Manual Call Point with Resettable Element (A5Q00013436)
SKU
A5Q00013436
£75.76
£63.13
Siemens FDM226-RP Cerberus PRO IP66 Weatherproof Manual Call Point with Resettable Element (A5Q00013436)
In Stock
Product Details for Siemens FDM226-RP Cerberus PRO IP66 Weatherproof Manual Call Point with Resettable Element (A5Q00013436)
Siemens FDM226-RP Weatherproof Manual Call Point with Resettable Plastic Element c/w Housing. For immediate manual actuation of a fire alarm. For indoor and outdoor applications.
Direct alarm actuation by pushing on the plastic element. The push-button is reset with the key and the device is ready for operation again.
For surface- and recess-mounted feed lines in easily accessible places.
Key Features of the A5Q00013436 |
|---|
|
> Manual call points for addressed Sinteso FS20 and Cerberus PRO FS720 fire detection systems
> Surface mounting with protection category IP66 > Direct activation: type 'A' according to EN 54-11 > Communication via the FDnet/C-NET detector line (addressed individually) > Resettable plastic insert > Two-wire installation for all cable types > Integrated line separator: The defective part on the detector line is located by the fire control panel and isolated between two FDnet/C-NET devices. > Built-in alarm indicator (LED) > Address automatically issued during commissioning > Protected electronics > Connection terminal DBZ1190-AB (accessory) can be mounted if shielded cables are used |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM226-RP |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM226-RP Cerberus PRO IP66 Weatherproof Manual Call Point with Resettable Element (A5Q00013436)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM226-RP Cerberus PRO IP66 Weatherproof Manual Call Point with Resettable Element (A5Q00013436)
| Product: | Siemens Manual Call Point with resettable plastic element, including housing base (IP66) |
| Product code: | A5Q00013436 |
| Dimensions: |
W:87mm x H:87 (113) mm x D:57mm |
| Standard: | EN 54-11 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Quiescent current: | 180 µA |
| Operating temperature: | -25 to +70 °C |
| Terminal block: | 0.28 - 1.5mm2 |
| Protection category: | IP66 |
| Relative humidity: | ≤95 % rel. (no condensation) |
| No. of addresses: |
1 |
| Storage temperature: | -30 to +75 °C |
| System compatibility: | FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720 |
| Communication protocol: | FDnet/C-NET |
| Colour: | Flame red, ~RAL 3000 |
