Siemens FDSB226-WR Cerberus PRO Sounder Beacon Base (Red LED) (No Base) (S54364-F13-A1)
SKU
S54364-F13-A1
£75.20
£62.67
Siemens FDSB226-WR Cerberus PRO Sounder Beacon Base (Red LED) (No Base) (S54364-F13-A1)
In Stock
Product Details for Siemens FDSB226-WR Cerberus PRO Sounder Beacon Base (Red LED) (No Base) (S54364-F13-A1)

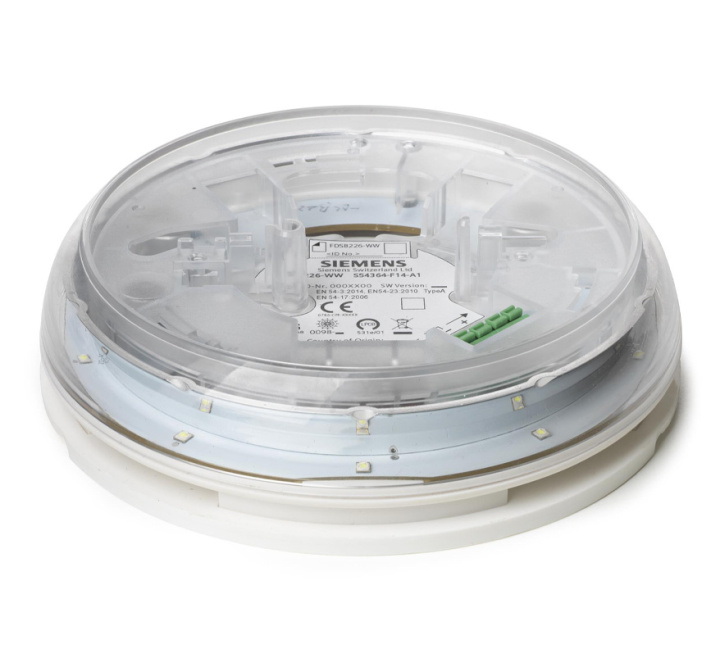

The Siemens FDSB226-WR Sounder Beacon Base (white with red LED) provides an alarm in an addressed fire detection system and activates an acoustic and optical alarm signal in the event of a fire alarm.
It is mounted on the ceiling e. g. in hotel rooms, along escape routes, corridors, staircases and offices.
The sound level, the tones and the luminous intensity are adjustable, the devices are synchronized.
Supply and communication via FDnet/C-NET, no auxiliary power needed. The device automatically monitors its beacon and acoustic function.
The base must be ordered separately. (base FDB228 or FDB230)
Key Features of the S54364-F13-A1 |
|---|
|
> For use on an FDnet/C-NET detector line in connection with a fire control panel FC20xx ('Sinteso' product line), FC72x ('Cerberus PRO' product line) or FC360 (Cerberus FIT)
> Sounder beacon base for ceiling mounting > Addressed (FDnet/C-NET) > Meets the requirements of the EN 54-3 and EN 54‑23 standards > Supply and communication via FDnet/C-NET > 16 tones > 2 programmable events: 'Alert' and 'Evacuation' > Adjustable sound levels up to max. 96 dBA > Red LEDs with four adjustable luminous intensities > Integrated line separator > Automatically monitors its beacon and acoustic function > Tool-free connection to the detector line. Possible conductor cross-sections to 2.5 mm2 > Max. protection IP21C > By setting the appropriate tone, it can be used as a break bell in schools or plants > Operation without a fire detector is possible with the blanking plate FDBZ298 > Protected electronics and high-quality components > Suitable for public and office buildings, hotels and schools |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDSB226-WR |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDSB226-WR Cerberus PRO Sounder Beacon Base (Red LED) (No Base) (S54364-F13-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDSB226-WR Cerberus PRO Sounder Beacon Base (Red LED) (No Base) (S54364-F13-A1)
| Product: | Siemens Sounder Beacon Base with LED |
| Product code: | S54364-F13-A1 |
| Dimensions: |
Ø:144mm x D:40mm |
| Standard: | EN 54-3 , EN 54-23 , EN 54-17 |
| Operating voltage: | DC 16 - 33V |
| Operating current: | 5 - 29 mA (tone and beacon activated) |
| Quiescent current: | 400 μA |
| Sound intensity: |
71 - 96 dB(A) |
| Light intensity: | High = C-3-12 Medium = C-3-10 Low = O-2.5-6.5 Indicator |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP21C; IP21C with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: |
16 |
| System compatibility: |
FDnet -> FS20 (MP7) C-NET -> FS720 (IP7)
|
| Communication protocol: |
FDnet/C-NET
|
| No. of addresses: |
1
|
| Colour: | Pure White, RAL 9010 |
| LED colour: | Red |
