Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
SKU
ZT-CP4/AD
£30.72
£25.60
Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
- Buy 10 for £29.77 £24.81 each and save 3%
- Buy 20 for £29.30 £24.42 each and save 5%
In Stock
Product Details for Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)

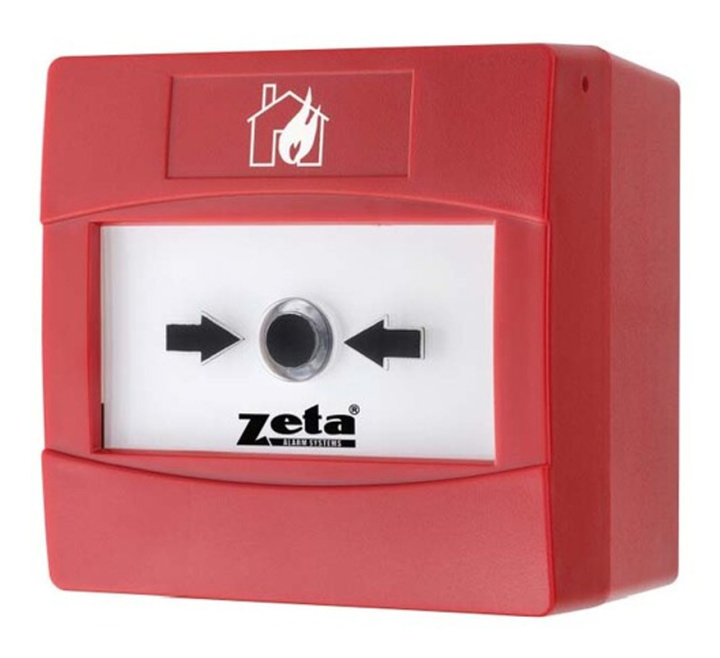

The Zeta ZT-CP4/AD addressable manual call point mimics the feel of breaking glass and also offers the benefits and environmental advantages of a resettable operating element.
Address this call point via an 8-way dip switch on the back of the call point. A visual LED indication confirms alarm activation.
A Polycarbonate cover (CP4-CV) is available for extra protection against accidental activation, allowing the unit to operate as a double action call point. This must be ordered separately.
Key Features of the ZT-CP4/AD |
|---|
|
> Red
> Addressable Call Point > High impact resistant ABS glass fibre material > Efficient and reliable mechanism > High visibility of the alarm condition > Approved to EN 54-11 |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZT-CP4/AD |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
No questions yet. Be the first to ask the question!
Product Specification for Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
| Product code: |
ZT-CP4/AD |
| Description: | Zeta CP4 Addressable Call Point |
| Dimensions: | W:85mm x H:85mm x D:61mm |
| Input voltage: |
17 - 28V DC |
| Element type: |
Resettable |
| Quiescent current: |
600μA maximum |
| Alarm current: |
2.5mA maximum |
| Operating temperature: |
-20oC to +60oC |
| Max. humidity: |
95% RH non-condensing |
| IP rating: |
IP32 |
