Zeta Fyreye MKII Addressable Sandwich Sounder & Beacon Base (MKII-SSB)
- Buy 10 for £31.09 £25.91 each and save 3%
- Buy 20 for £30.59 £25.49 each and save 5%
Limited Stock
Product Details for Zeta Fyreye MKII Addressable Sandwich Sounder & Beacon Base (MKII-SSB)

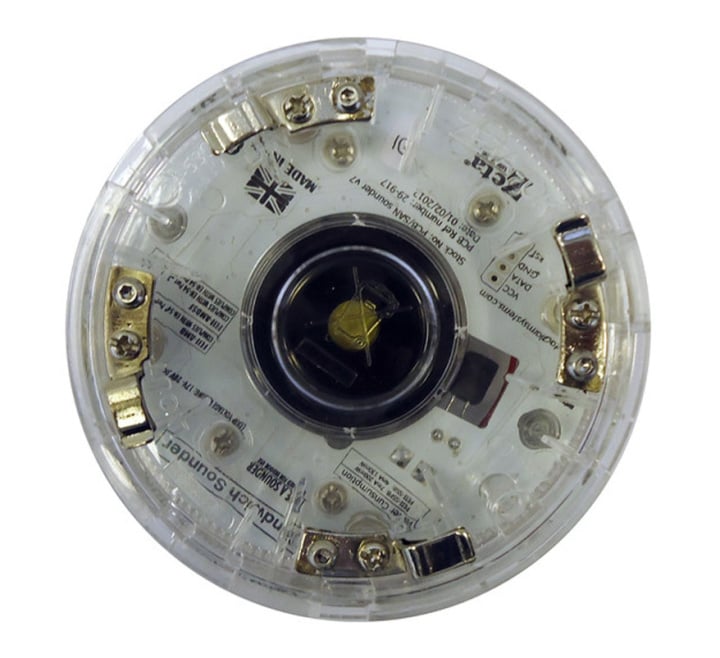

The Zeta MKII-SSB Fyreye MKII Sandwich Sounder & Beacon Base is a platform sounder that works with the Zeta Fyreye MKII protocol.
The sounder can be triggered from it`s detectors remote LED output, allowing the sounders to be triggered individually. It can also be triggered using the protocol`s common sounder group command, meaning that it can be triggered even if it`s detector has been removed.
This sounder has been designed to be sandwiched between a common base and an addressable Fyreye MKII detector.
All loop cables are terminated at the detector base, with the sounder base clipping onto the common base. The sounder can then be secured with it`s grub screw to prevent unauthorised removal. The sounder does not need to be addressed. If it is to be started individually, it is controlled by the detector`s remote LED output.
Alarm Tone Selection
The MKII-SSB Sandwich sounder supports alarm tone selection. The alarm tone can be set for the whole loop via the control panel. One of 16 tones can be chosen for the alarm tone.
- BS Fire (Default Zeta tone) Alternating 800 & 970 1Hz (500ms-500ms) 96 (+/- 2dB)
- BS Fire Alternating 800 & 970 2Hz (250ms-250ms) 95 (+/- 2dB)
- BS Fire Sweep 800 to 970 1Hz (1 per second) 98 (+/- 2dB)
- BS Fire Sweep 800 to 970 7Hz (7 per second) 99 (+/- 2dB)
- BS Fire Sweep 800 to 970 50Hz (50 per second) 99 (+/- 2dB)
- BS Fire Alternating 510 & 610 1Hz (500ms-500ms) 100 (+/- 2dB)
- German fire (DIN 33 404) Sweep (DIN) 1200 to 500 1Hz 99 (+/- 2dB)
- French fire (NFS 32-001) Alternating 554 & 440 100ms-400ms 95 (+/- 2dB)
- Dutch fire (NEN 2575) Slow whoop 500 to 1200 3.5s sweep, 0.5 s silence, then repeat 98 (+/- 2dB)
- PFEER Toxic Gas Continuous 970 Steady 95 (+/- 2dB)
- PFEER alert Intermittent 970 0.5Hz (1s On/1s Off) 92 (+/- 2dB
Key Features of the MKII-SSB |
|---|
|
> Sandwich between a common base and an addressable Fyreye MKII Detector
> All loop cables terminated at Detector base > Sounder base clips onto common base > Securing with grub screw prevents unauthorised removal > Does not need to be addressed > Plug & play (no wiring, just fit to base) > Multiple programmable tones > 100mm x 40mm without detector |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | MKII-SSB |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | White |
| Warranty | 2 Years |
FAQ’s for Zeta Fyreye MKII Addressable Sandwich Sounder & Beacon Base (MKII-SSB)
Product Specification for Zeta Fyreye MKII Addressable Sandwich Sounder & Beacon Base (MKII-SSB)
| Product code: |
MKII-SSB |
| Description: | Zeta MKII Sandwich Sounder Base |
| Dimensions: | Diameter: 100mm x D:40mm (without detector) |
| Supply voltage: | 17 to 28V DC |
| Quiescent current: | 650μA |
| Alarm current: | 5.5mA |
| Sound output: | Approx 85 dB (depending on tone) |
| IP rating: | IP21C |
| Max. humidity: |
95% RH Non Condensing |
| Min. operating temp: | 0oC |
| Operating temperature: | -10 to +55oC (non-condensing or icing) |
| Weight: | 160g |
