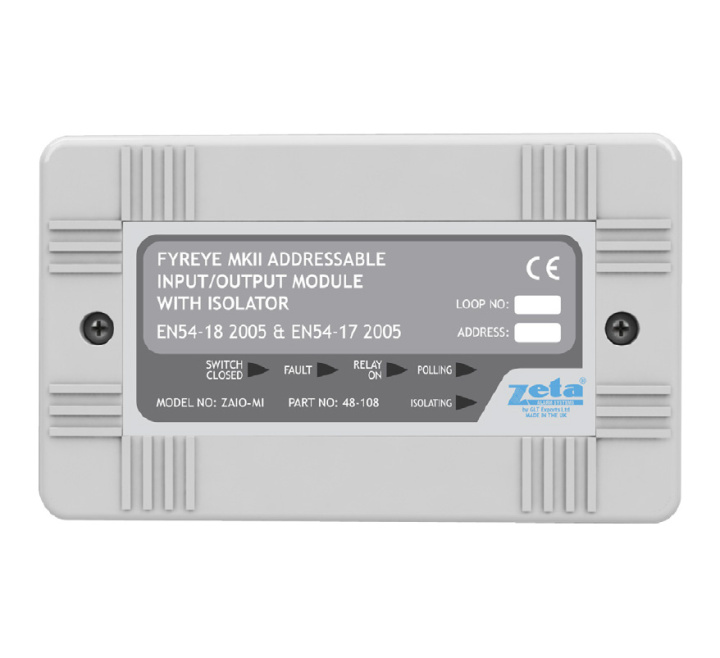

Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Low Voltage Rated) (ZAIO-MI)
- Buy 10 for £47.96 £39.97 each and save 3%
- Buy 20 for £47.20 £39.33 each and save 5%
In Stock
Product Details for Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Low Voltage Rated) (ZAIO-MI)
The Zeta ZAIO-MI is both an input and output module in an enclosure (2 gang box size) with a protected electronic circuit board (to minimize any damages during installation). Supplied with a back box suitable for surface mounting indoors. Designed and manufactured to meet the requirements of EN54-18 2005 and EN54-17 2005.
The ZAIO-MI is used when both an input needs to be monitored and, at the same time, a local output (relay output) needs to be triggered to switch ancillary equipment on or off during an alarm condition.
Typical output triggering includes: controlling lift operation during an alarm, starting fire pump, stopping ventilation fans etc. For more details and connection information, please consult the installation guide.
Key Features of the ZAIO-MI |
|---|
|
> Low voltage rated
> Loop powered (60 devices per loop as maximum) > Hand addressed using the 8 way dip switch OR > Softly addressed using a handheld MKII Programmer (part no. 48-004) > Equipped with short circuit line isolator > Extensive front unit indications |
| Brand | Zeta |
|---|---|
| Manufacturer Part No. | ZAIO-MI |
| Product Series | Zeta Addressable |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Zeta MKII |
| Colour | Grey |
| Warranty | 2 Years |
FAQ’s for Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Low Voltage Rated) (ZAIO-MI)
Product Specification for Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Low Voltage Rated) (ZAIO-MI)
| Product code: |
ZAIO-MI |
| Description: | Zeta Fyreye MKII Addressable Input/Output Module with Isolator, Low Voltage Rated |
| Dimensions: | W:150mm x H:90mm x D:45mm |
| Operating voltage: |
17 - 28V DC |
| Quiescent current @ 24V: |
1.0mA |
| Switch input closed: |
1.25mA (LED OFF) |
| Relay operated: |
2.0mA (Max 2 LEDs ON) |
| Relay rating: |
SELV @ 1A |
| Isolating current: | 7.3mA |
| Input end of line: | 20k |
| Alarm triggering resistor: |
1k |
| IP rating: |
IP21C |
| Operating temperature: | -10 to +55oC |
| Max humidity: | 95% RH Non-Condensing |
| Weight: | 220g |
