Product Details for Global Fire VALKYRIE VOX IP65 Addressable Wall Mount Voice Sounder (Red) (VOX-A-VALKYRIE-S-IP65)

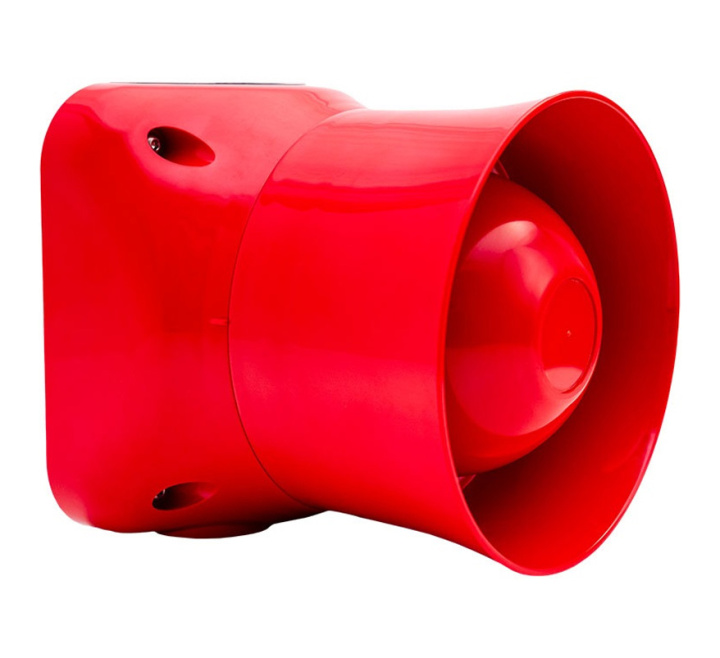

The Global Fire VALKYRIE VOX A IP65 is a wall-mounted Addressable Voice Sounder in a red housing. It is specifically designed to be used outdoors. Up to 32 individually addressed sounders can be installed per loop occupying an address in the range 94 to 125, it can be also configured the shadow mode. The address is set using switches 1 to 5 of the 8 way DIL switch.
With message selection directly programmable via the standard sounder programming of GFE fire alarm control panels, the VALKYRIE VOX A IP65, can broadcast up to 5 differentiated pre-loaded messages: Alert, Fire, Evacuation, Test and Silence Message. The desired messages can be downloaded from our own proprietary recording PC application (VOX LOADER), via a standard USB interface. This product is Loop Controlled and Loop Powered.
Key Features of the VOX-A-VALKYRIE-S-IP65 |
|---|
|
> Wall mounted
> Addressable Voice Sounder > Red housing > IP65, for outdoor use > Up to 32 individually addressed sounders per loop (addresses 94 - 125) > Can be configured in shadow mode > Set address using switches 1 - 5 of 8-way DIL switch > 5 pre-loaded messages (Alert, Fire, Evacuation, Test and Silence Message) > Loop controlled and loop powered > 107 dBA maximum sounder output @ 1m > Programme messages via USB i/face using dedicated software |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VOX-A-VALKYRIE-S-IP65 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | Red |
| Warranty | 10 Years |
FAQ’s for Global Fire VALKYRIE VOX IP65 Addressable Wall Mount Voice Sounder (Red) (VOX-A-VALKYRIE-S-IP65)
Product Specification for Global Fire VALKYRIE VOX IP65 Addressable Wall Mount Voice Sounder (Red) (VOX-A-VALKYRIE-S-IP65)
| Product code: | VOX-A-VALKYRIE-S-IP65 |
| Dimensions: |
D: 110mm x H:83.6mm |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current: |
0.7mA (Quiescent); 7.5mA max (Sounder active or charging) |
| Loop current - Alarm Beacon: | 1.4 mA |
| Max. sounder output @ 1m: | Tone 104 dBA - Voice message 107 dBA |
| Protection category: | IP65 - Type B - Outdoor use |
| Operation temperature: | -10oC to +50oC |
| Max. cable size: | 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | Red / ABS & PC |
| Weight: | 333g incl. base, 400g incl. packaging |
