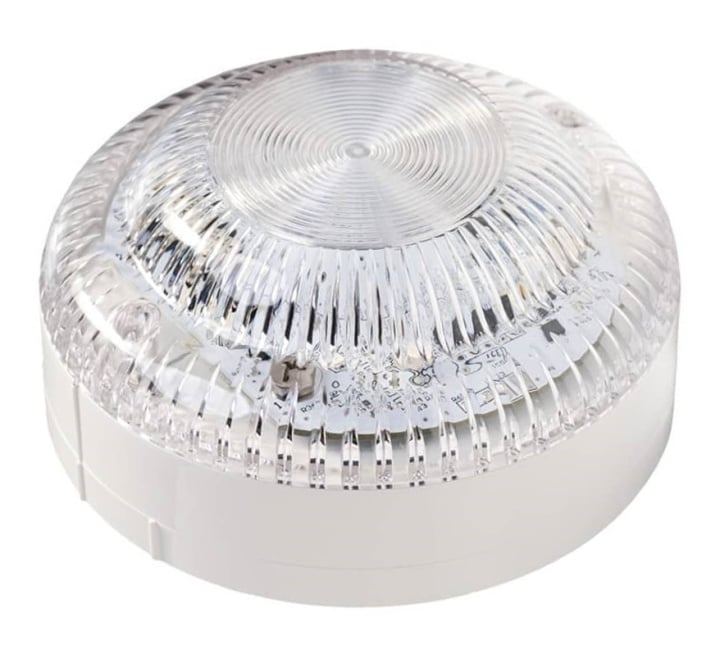

Global Fire VALKYRIE AB Addressable Wall Mount Beacon (White) (VALKYRIE-AB-WHT)
- Buy 10 for £34.26 £28.55 each and save 2%
- Buy 20 for £33.19 £27.66 each and save 5%
Product Details for Global Fire VALKYRIE AB Addressable Wall Mount Beacon (White) (VALKYRIE-AB-WHT)
The Global Fire VALKYRIE-AB(WHT) is a white Wall Mounted Addressable Visual Indicating Device, with low power consumption. Up to 32 individually addressed beacons can be installed per loop occupying address 94 to 125. The address is set using switches 1 to 5 of the 8 way DIL switch.
When individual address reporting is not required, VALKYRIE AB can be configured as a Shadow Beacon. In this case sounders do not occupy an address in the loop thus freeing up addresses for more detection devices. Shadow beacons do not report back to the control panel so their presence on the loop is not monitored. Shadow beacons draw current from the loop (3 mA in alarm) and must be included in loop load calculations.
When VADs are not needed the VALKYRIE AB is the best solution as it is produced using the latest high intensity LED technology and uses extremely low levels of current consumption providing a highly visible flash.
Key Features of the VALKYRIE-AB(WHT) |
|---|
|
> Wall mounted
> White Addressable Beacon > Low power consumption > Address is set using switches 1 - 5 of the 8-way DIL switch |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VALKYRIE-AB(WHT) |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Warranty | 10 Years |
FAQ’s for Global Fire VALKYRIE AB Addressable Wall Mount Beacon (White) (VALKYRIE-AB-WHT)
Product Specification for Global Fire VALKYRIE AB Addressable Wall Mount Beacon (White) (VALKYRIE-AB-WHT)
| Product code: | VALKYRIE-AB-WHT |
| Dimensions: |
D: 110mm x H:85mm (incl. base) |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current - Quiescent: |
550 uA max. with isolator |
| Loop current - Sounder/Beacon active: | 10mA - 280W @ 28V DC, isolator incl. |
| Max. sounder output: | 100 dB (@ 1 meter - 30V DC) |
| Reset/start-up times: |
20 seconds max. |
| Protection category: | IP21C - Type A - Indoor use |
| Operation temperature: | -10oC to +55oC |
| Max. cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | White / ABS & PC |
| Weight: | 254g incl. base, 304g incl. packaging |
