SKU
VALKYRIE-ASI-IP65
£59.14 £49.28

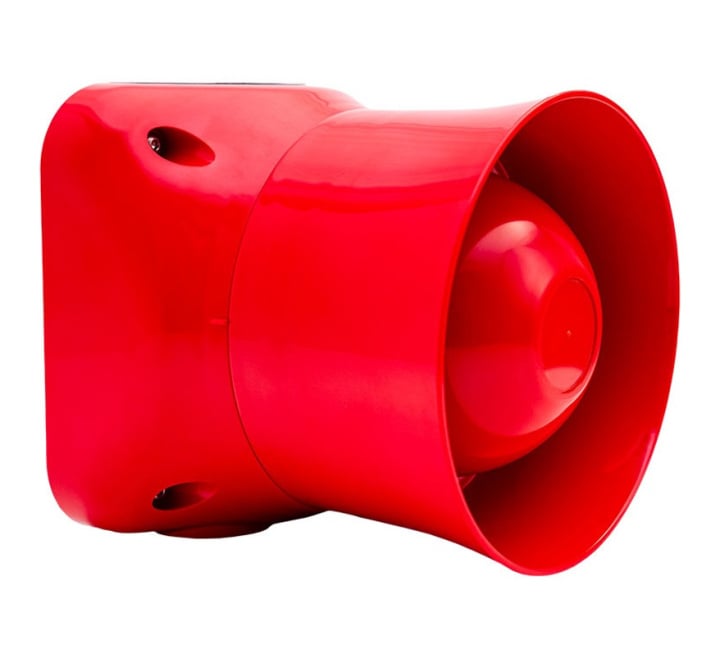

Global Fire VALKYRIE Addressable Wall Mount Sounder c/w Isolator, Red, IP65
- Buy 10 for £58.22 £48.52 each and save 2%
- Buy 20 for £57.31 £47.76 each and save 3%
- Buy 50 for £56.40 £47.00 each and save 5%
Global Fire Equipment's VALKYRIE-ASI-IP65 is a red wall mounted, Addressable Sounder incorporating an Isolator. For outdoor use IP65.
Key Features |
---|
> Wall mounted > Red Addressable Sounder c/w Isolator > Outdoor use, IP65 > Low power consumption > Up to 32 individually addressed sounders per loop (occupying address 94-125) > Address is set using switches 1 - 5 of the 8-way DIL switch > 4 selectable tones (use switches 6&7) > Can be configured as a shadow sounder (shadow sounders do not report back to the control panel - they draw current from the loop - 10 mA in alarm - and must be included in loop load calcs) |
Manufacturer | Global Fire Equipment |
---|---|
MPN | VALKYRIE ASI IP65 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Product code: | VALKYRIE-ASI-IP65 |
Dimensions: | D: 112mm x H:110mm (incl. base) |
Supply voltage: | Loop powered - 20V to 30V DC |
Loop Current - Quiescent: | 550 uA max. with isolator |
Loop current - Sounder active: | 10mA - 280W @ 28V DC, isolator incl. |
Max. sounder output: | 100 dB (@ 1 meter - 30V DC) |
Reset/start-up times: | 20 seconds max. |
Protection category: | IP65 - Type B - Outdoor use |
Operation temperature: | -25oC to +70oC |
Max. cable size: | 0.5 - 2.5mm2 |
Max. humidity: | 95% RH Non-Condensing |
Colour / case material: | Red / ABS & PC |
Weight: | 315g incl. base, 350g incl. packaging |
