Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

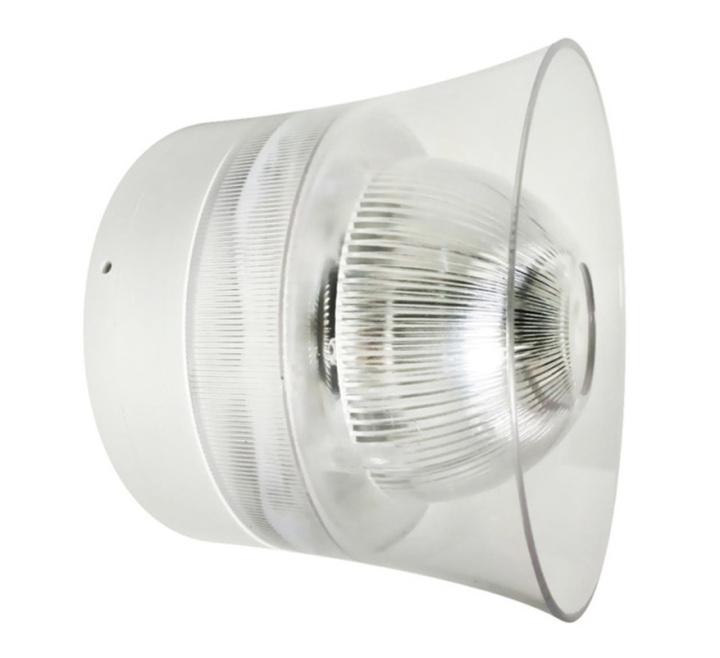

Global Fire VALKYRIE VOX AB Addressable Wall Mount Voice Sounder Beacon (White) (VOX-A-VALKYRIE-B-WHT)
SKU
VOX-A-VALKYRIE-B(WHT)
Global Fire VALKYRIE VOX AB Addressable Wall Mount Voice Sounder Beacon (White) (VOX-A-VALKYRIE-B-WHT)
Discontinued
Alternative Products
Product Details for Global Fire VALKYRIE VOX AB Addressable Wall Mount Voice Sounder Beacon (White) (VOX-A-VALKYRIE-B-WHT)
<p>The Global Fire VOX-A-VALKYRIE-B(WHT) is a wall-mounted addressable voice sounder with beacon in a white casing. The VALKYRIE VOX voice sounder is based on our successful horn type sounder and sounder/beacon.</p>
<p>With message selection directly programmable via the standard sounder programming of GFE fire alarm control panels, the VALKYRIE VOX A can broadcast up to five different pre-loaded messages. The desired messages can be downloaded from our own proprietary message recording PC application (VOX LOADER) via a standard USB interface. This product is loop controlled and powered.</p>
Key Features of the VOX-A-VALKYRIE-B(WHT) |
|---|
|
> Wall mounted
> Addressable Voice Beacon > White housing > Up to 32 individually addressed sounders per loop (addresses 94 - 125) > Can be configured in shadow mode > Set address using switches 1 - 5 of 8-way DIL switch > 5 pre-loaded messages (Alert, Fire, Evacuation, Test and Silence Message) > Loop controlled and loop powered > 107 dBA maximum sounder output @ 1m > Programme messages via USB i/face using dedicated software |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VOX-A-VALKYRIE-B(WHT) |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Warranty | 10 Years |
FAQ’s for Global Fire VALKYRIE VOX AB Addressable Wall Mount Voice Sounder Beacon (White) (VOX-A-VALKYRIE-B-WHT)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VALKYRIE VOX AB Addressable Wall Mount Voice Sounder Beacon (White) (VOX-A-VALKYRIE-B-WHT)
| Product code: | VOX-A-VALKYRIE-B-WHT |
| Dimensions: |
D: 110mm x H:85.1mm |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current: |
0.7mA (Quiescent); 7.5mA max (Sounder active or charging) |
| Loop current - Alarm Beacon: | 1.4 mA |
| Max. sounder output @ 1m: | Tone 104 dBA - Voice message 107 dBA |
| Protection category: | IP21C - Type A - Indoor use |
| Operation temperature: | -10oC to +55oC |
| Max. cable size: | 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | White / ABS & PC |
| Weight: | 270g incl. base, 325g incl. mounting base |
