HAES 8A Multi Purpose Timer / Pulsing Relay Card (RECARD-TMR)
SKU
RECARD-TMR
£51.16
£42.63
HAES 8A Multi Purpose Timer / Pulsing Relay Card (RECARD-TMR)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for HAES 8A Multi Purpose Timer / Pulsing Relay Card (RECARD-TMR)

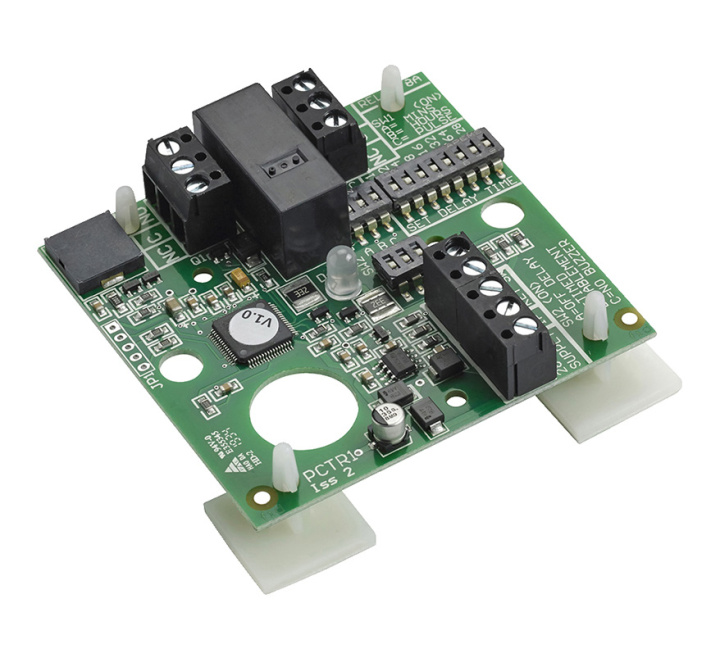

The HAES RECARD-TMR is an 8 amp double pole PCB mounted changeover relay with a programmable time delay circuit 0-255 seconds/minutes/or hours.
Alternatively the relay can be set to pulse on and off. On & off times can be individually set from 0-255 seconds.
Supplied c/w Nylon self-adhesive mounting pillars.
Key Features of the RECARD-TMR |
|---|
|
> 8 amp double pole relay
> Contacts rated at 250v ac > Two colour relay status LED indicator > Delay timer mode: 0-255 secs, mins or hrs > Pulsing relay mode: ON & OFF times individually set 0-255 secs |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | RECARD-TMR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES 8A Multi Purpose Timer / Pulsing Relay Card (RECARD-TMR)
No questions yet. Be the first to ask the question!
Product Specification for HAES 8A Multi Purpose Timer / Pulsing Relay Card (RECARD-TMR)
| Operating Voltage | 24v dc (nominal) |
| Contact Rating | 250v ac 8A, double pole changeover |
| Quiescent Current | 7.5mA |
| Activated Current LED Only | 24mA |
| Activated Current LED + Buzzer | 38mA |
| Activated Current LED + Relay | 43mA |
| Activated Current LED + Buzzer + Relay | 57mA |
