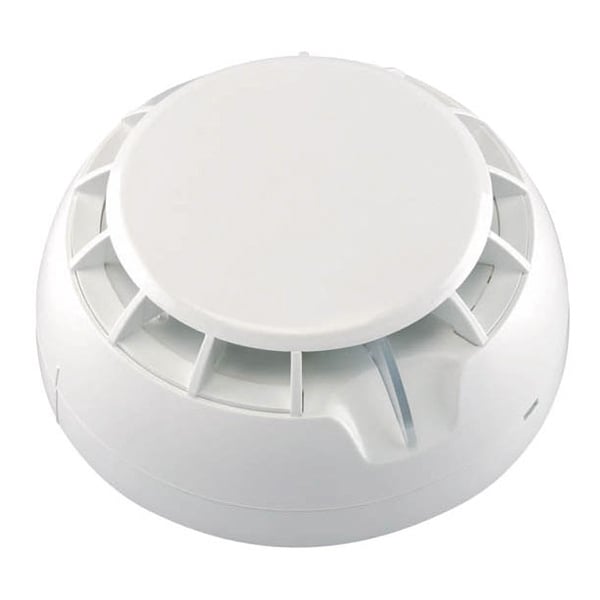

ESP MAGfire 12V Optical Smoke Detector with Relay Base (PSD212)
SKU
PSD212
£25.09
£20.91
ESP MAGfire 12V Optical Smoke Detector with Relay Base (PSD212)
- Buy 10 for £24.70 £20.58 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire 12V Optical Smoke Detector with Relay Base (PSD212)
ESP MAGfire PSD212 Optical Smoke Detector with Relay Base. Designed for use with 12V hardwire intruder alarm systems. Supplied with a relay base. Fully compliant with CPR and approved to EN54 standards.
Key Features of the PSD212 |
|---|
|
> Optical Smoke Detector with Relay Base
> 12v DC hardwire > White > IP30 rated > Can be used on Grade-C systems > BS EN 54-7 compliant |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | PSD212 |
Write Your Own Review
FAQ’s for ESP MAGfire 12V Optical Smoke Detector with Relay Base (PSD212)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire 12V Optical Smoke Detector with Relay Base (PSD212)
| Dimensions (mm): |
ø102 x 48 (including base) |
| Finish: | White |
| Materials: | ABS |
| Test Facility: | Simulated smoke |
| Operating Voltage: | 9 - 30 V DC |
| Alarm current | 29 @ 12V (mA) |
| Cable size (mm2): | 0.4 - 2.0 (Twin) |
| Standby Current: | <50 @ 12V (μA) |
| Wiring Type: | Conventional |
| Output Relay Rating: |
30V/0.5A |
| IP Rating | IP30 |
| Operating Temperature: | -10o to +60o C |
| Relative Humidity Resistance | 93% (+-3) @ 40oC |
| Warranty: | 3 years |
| Weight: | 0.16kg |
| Standards: | BS EN 54-7 |
