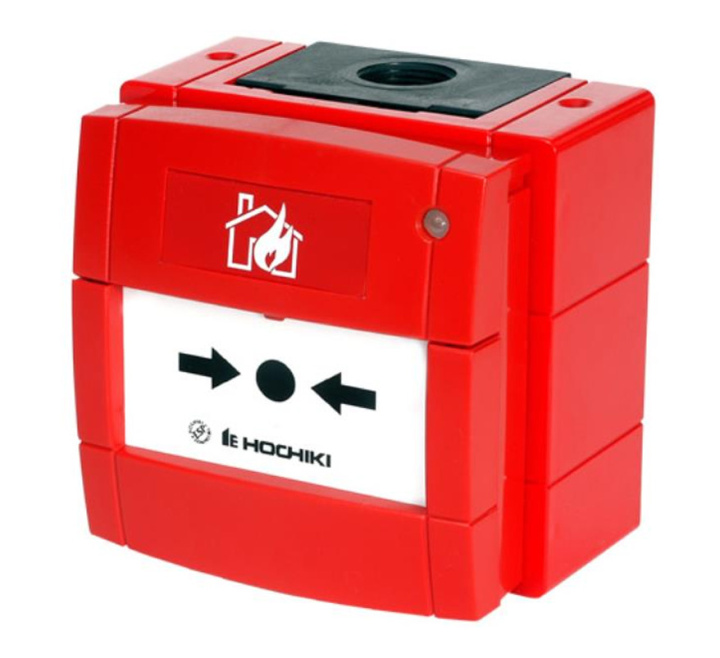

Hochiki HCP-W(SCI) Weatherproof Addressable Call Point with SCI (Red)
In Stock
Product Details for Hochiki HCP-W(SCI) Weatherproof Addressable Call Point with SCI (Red)
The Hochiki HCP-W(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki's ESP analogue addressable protocol.
The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing (1) for communications polling and is continuously lit when the HCP-W(SCI) is operated. In these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.
The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt.
A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside.
Two terminal blocks are provided for easy connection to the loop wiring.
The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing.
Key Features of the HCP-W(SCI) |
|---|
|
> Fast response
> Integral short-circuit isolator > Bi-coloured status LED > Non-frangible element fitted as standard (conforms to EN54) > Addressed with TCH-B200 Hand Held Programmer > Surface mounted > IP67 rated > LPCB approved to EN54 |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | HCP-W(SCI) |
| Product Series | Hochiki ESP |
| Colour | Red |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki HCP-W(SCI) Weatherproof Addressable Call Point with SCI (Red)
Product Specification for Hochiki HCP-W(SCI) Weatherproof Addressable Call Point with SCI (Red)
| Description | Hochiki Weatherproof Analogue Addressable Manual Call Point with SCI |
| Product Code | HCP-W(SCI) |
| Dimensions (mm): | W 98 x H 94 x D 78 |
| IP Rating: | IP67 |
| Operating voltage: | 17 - 41Vdc |
| Low power mode: | 180 μA (max), 100 μA (typ) |
| Quiescent current: | 350 μA (max), 250 μA (typ) |
| Alarm current: | 10.0 mA (max), 5 mA (typ) |
| Resistance in positive: | 100 mΩ when closed (max), 100 kΩ when open (min) |
| Short circuit threshold (typ.): | 430 Ω |
| Transmission method: | Digital Communication Using ESP |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30oC to +70oC |
| Relative humidity: | 95% RH at 40oC non-condensing |
| Colour / material: | Red / Modified Polyphenylene Oxide |
| Weight (g): | 234g |
