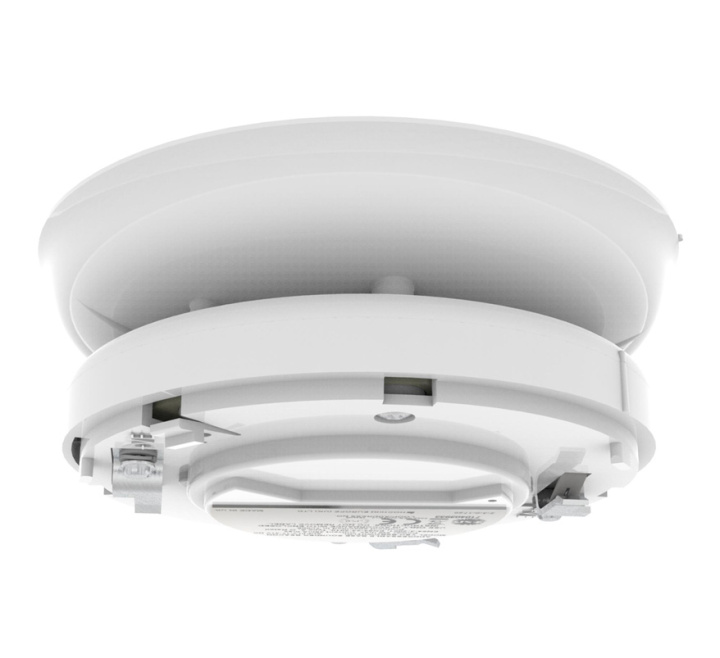

Hochiki YBO-BS(WHT) Addressable Base Sounder - White Case
In Stock
Product Details for Hochiki YBO-BS(WHT) Addressable Base Sounder - White Case
The Hochiki YBO-BS(WHT) is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (2 dB(A)) with low current consumption.
The unit is designed to fit to the Standard Base (YBN-R/3(WHT)) or the Isolator Base (YBO-R/SCI(WHT) – from Batch Number 6044) and can be fitted with any of the white ESP Range of Sensors, Beacons or Remote Indicators.
The unit can also be converted into a wall sounder with the simple addition of a cap to cover the terminals (SI/CAP2(WHT))
The sounder is Ingress Protection rated to IP21 and for internal use only
An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution
Key Features of the YBO-BS(WHT) |
|---|
|
> Loop Powered with Single Loop Address - addressed automatically by Control Panel or via the TCH-B200 Hand Held Programmer
> Variable Sound Output 50 ~ 98 dB(A) (±2 dB(A)) output at 1 metre > Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator > 51 User-Selectable Tones (all tones EN54-3 compatible) > Auto-Shutdown feature prevents noise pollution > Approved by LPCB and VdS > Also available in ivory and black |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-BS(WHT) |
| Product Series | Hochiki ESP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki YBO-BS(WHT) Addressable Base Sounder - White Case
Product Specification for Hochiki YBO-BS(WHT) Addressable Base Sounder - White Case
| Description | Hochiki Analogue Addressable Base Sounder |
| Product Code | YBO-BS(WHT) |
| Dimensions: | W:112mm x H:112mm x D:67mm |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 150 μA |
| Sounding curent (typ): | 0.8 mA (50 dB(A) @ 1 m) ~ 16 mA (98 dB(A) @ 1 m) |
| Sound output (@ 1m): | 50 ~ 98 dB(A) (±2 dB(A)) @ 24 VDC or above (EN54-3 compliant) |
| No. of tones: | 51 |
| Tone frequency range: | 300 Hz ~ 2850 Hz |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +70°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Colour/Case material: | White / PC ABS |
| IP Rating: | IP21 |
| Base fixing centres: | 48 - 74 mm |
| Weight: | 152g |
