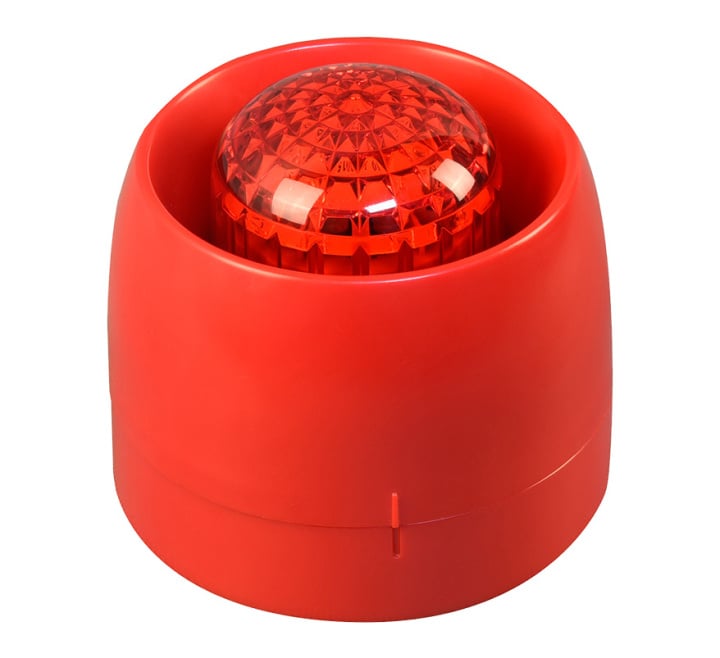

GST Conventional Sounder Beacon (C-9403)
SKU
C-9403
£26.84
£22.37
GST Conventional Sounder Beacon (C-9403)
- Buy 10 for £26.44 £22.03 each and save 2%
Limited Stock
Product Details for GST Conventional Sounder Beacon (C-9403)
The GST C-9403 Conventional Sounder Strobe is an audible and visible alarm device used to warn people in the field when a fire event occurs. It provides an audible and visible alarm signal when applied to external 24VDC power (D1 connected with positive and D2 with negative). A 25.5mm high shallow base and a 40mm high deep base are available.
Key Features of the C-9403 |
|---|
|
> 2 selectable tones
> Standard EN54-3 > Red body and lens |
| Brand | GST |
|---|---|
| Manufacturer Part No. | C-9403 |
Write Your Own Review
FAQ’s for GST Conventional Sounder Beacon (C-9403)
No questions yet. Be the first to ask the question!
Product Specification for GST Conventional Sounder Beacon (C-9403)
| Operating Voltage Power: | 24VDC (20V~28V) |
| Operating Current: | Start current ≤35mA |
| Flash Frequency: | 2.0×(1±20%)Hz |
| Sound Level Tone 1: | not lower than 95dB (at 1m distance) |
| Sound Level Tone 2: | not lower than 95dB (at 1m distance) |
| Ingress Protection Rating: | IP33C |
| Operating Temperature: | -10℃ ~ +50℃ |
| Relative Humidity: | ≤95%, non-condensing |
| Material of Enclosure: | ABS |
| Dimension (D×H) - deep base: | ф110mm×110.4mm |
| Dimension (D×H) - shallow base: | ф110mm×95.9mm |
| Mounting Hole Spacing: | 55mm ~ 80mm |
| Weight - deep base: | About 355g |
| Weight - shallow base: | About 327.2g |
