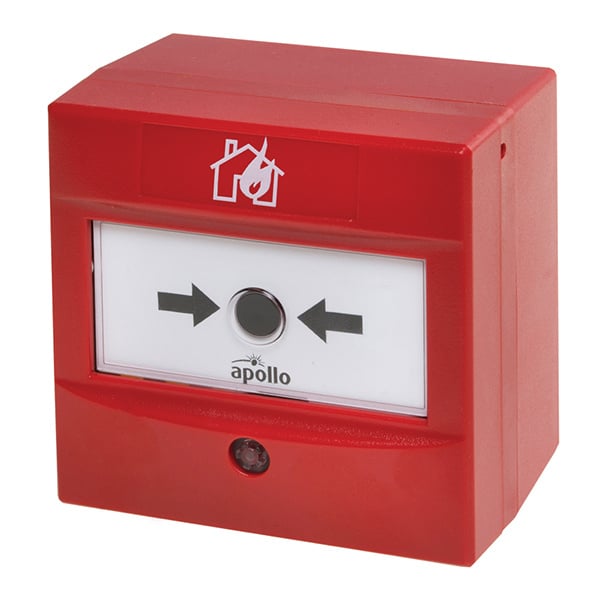

Apollo Conventional Manual Call Point (SC2900-001APO)
In Stock
Product Details for Apollo Conventional Manual Call Point (SC2900-001APO)
The Apollo Conventional Manual Call Point (SC2900-001APO) utilises the same operation and resettable mechanism as Apollo's Intelligent Manual Call Point. It is designed to operate on a zone of conventional fire detection devices.
An alarm is initiated by pressing the resettable element on the front, the activation status is indicated by the rotation of the resettable element which will display yellow and black indication bars and an illuminated solid red LED. It can be easily reset from the front mechanism using the supplied reset key.
The Apollo Conventional Manual Call Point is supplied with both 470Ω resistor and normally open clean contact electrical options. The LED will only illuminate red when operated in 470Ω mode.
Electrical Consideration
The Apollo Conventional Manual Call Point has a contact rating of 30 V DC at 2 A.
Mechanical Construction
The component parts of the Apollo Conventional Manual Call Point are moulded in a robust fire-retardant polycarbonate or ABS.
Key Features of the SC2900-001APO |
|---|
|
> Resettable operating element
> Easy access, front reset mechanism > Ergonomic reset key (supplied) > EN 54-11 certified > 170° viewable LED > Suitable for flush or surface mounting > Optional hinged cover |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | SC2900-001APO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 10 Years |
FAQ’s for Apollo Conventional Manual Call Point (SC2900-001APO)
Product Specification for Apollo Conventional Manual Call Point (SC2900-001APO)
All data is supplied subject to change without notice. Specifications are typical at 24 V, 25°C and 50% RH unless otherwise stated.| Supply Voltage: | 18 V - 30 V dc |
| Switch Contact Type: | Dry contact only |
| Switch Contact Rating: | 2 A |
| Operating temperature: | -40 °C to +70 °C |
| Humidity (no condensation or icing): | 0% to 95% RH |
| IP Rating: | IP44 |
| Approvals and standards: | EN 54-11, CPR & TUV-Mark |
| Dimensions: | 90 mm height x 90 mm width x 63 mm depth |
| Weight: | 150g |
| Material: | Red flame-retardant polycarbonate |
