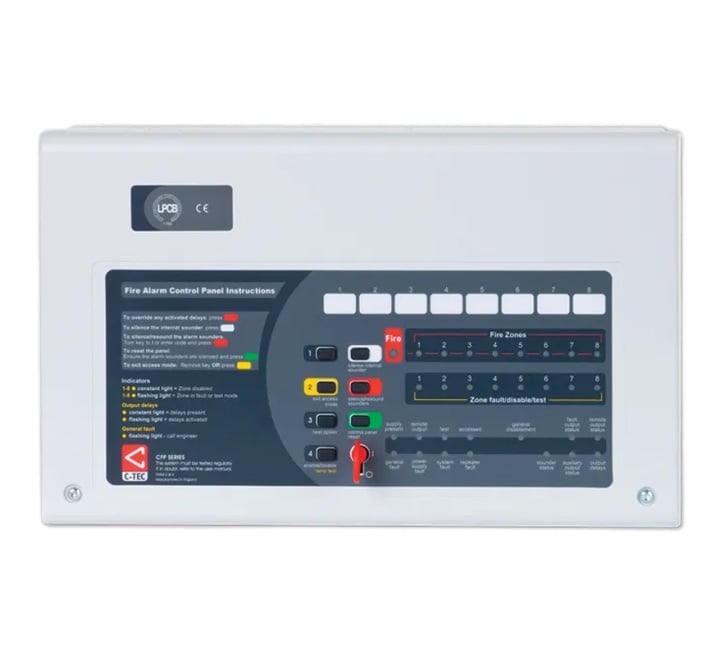

C-TEC CFP 2 Zone Conventional Fire Alarm Panel (CFP702-4)
SKU
CFP702-4
£120.95
£100.79
C-TEC CFP 2 Zone Conventional Fire Alarm Panel (CFP702-4)
- Buy 10 for £116.29 £96.91 each and save 4%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for C-TEC CFP 2 Zone Conventional Fire Alarm Panel (CFP702-4)
LPCB certified to EN54-2/4, C-TEC's CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price. Supplied in an attractive flush or surface mountable plastic enclosure, it includes two detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.
A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided. Optional repeaters, relay expansion boards and EN54-13 system compliance devices are also available.
Key Features of the CFP702-4 |
|---|
|
> Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) with optional EN54 part 13. compliance from the BSI.
> Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry. > Manufactured by C-TEC in the UK. > Two detector zone circuits. > Four conventional sounder circuits* > Integral 1.5A EN54-4/A2 compliant switch mode PSU. > Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones. > Two on-board relays (Fire and Fault). > Two open-collector outputs (Remote and Reset). > 'Class change' and alert inputs. > Installer-friendly design. > Attractive flush or surface mountable plastic lid and enclosure - no bezel required. > Low 25mA quiescent current. > Multiple indicators. > System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system), optional CFP relay boards and optional EN54-13 compliant sounder circuit boards. > Space for two x 12V 3.3Ah VRLA batteries. > Fully compatible with C-TEC's ActiV range of conventional fire detectors. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CFP702-4 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 2 |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC CFP 2 Zone Conventional Fire Alarm Panel (CFP702-4)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC CFP 2 Zone Conventional Fire Alarm Panel (CFP702-4)
| Approvals/Certifications | Certified to EN54-2/4 by the LPCB (176b)/(0832-CPD-1704) |
| Mains Supply: | 230V 50/60Hz |
| Mains rated current: | 350mA maximum |
| Internal Power Supply: | 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault) |
| Total output current limited to: | 1.5A @ 230Vac (ImaxA eq 146mA) |
| Quiescent Current: | 25mA (mains failed, internal sounder active, PSU & gen fault LED lit) |
| Max. battery size and type: | 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah |
| No. of detector zone circuits: | 2 (Max. length per circuit is 500m) |
| Call Point Resistor Value: | 470 to 680Ω. |
| Max. devices per detector zone: | 25 detectors (or 32 detectors/manual call points combined) |
| No. of conventional sounder circuits: | 4 (Max. length per circuit is 500m) |
| EOL Resistor Value: | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold) |
| Alarm Voltage: | 27V max, 20V min (final battery voltage) |
| Max. sounder output current: | 4 x 200mA (800mA total) |
| Auxiliary Relays: | Two: (1) Aux/ Fire; (2) Fault. Volt frree single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
| Open collector outputs: | Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit voltage 27Vdc). |
| Other outputs: | 24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed). |
| Auxiliary inputs: | Two: (1)'Class Change' (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
| Engineer (AL3) functions: | Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) when a new zone enters alarm; Enter fault diagnostic facilities. |
| Expansion connections: | Yes - for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards. |
| Product Dimensions (mm): | 380 W x 235 H x D 96mm |
| Construction & Finish: | Plastic lid and base; RAL7035 textured. |
| IP Rating: | IP30. |
| Weight: | 1.75kg (without batteries). |
| Operating Conditions/Temperature: | -5°C to 40°C. Max relative humidity: 95% |
