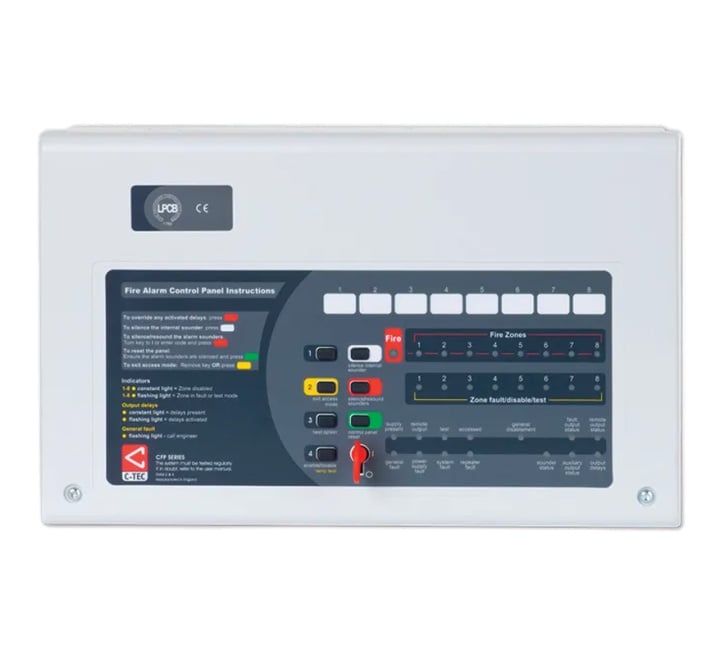

C-TEC CFP 8 Zone Conventional Fire Alarm Panel (CFP708-4)
SKU
CFP708-4
£193.91
£161.59
C-TEC CFP 8 Zone Conventional Fire Alarm Panel (CFP708-4)
Limited Stock
Product Details for C-TEC CFP 8 Zone Conventional Fire Alarm Panel (CFP708-4)
LPCB certified to EN54-2/4, C-TEC's CFP 8 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.
Supplied in an attractive flush or surface mountable plastic enclosure, it includes eight detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.
A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.Optional repeaters, relay expansion boards and EN54-13 system compliance devices are also available.
Key Features of the CFP708-4 |
|---|
|
> Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB) with optional EN54 part 13 compliance from the BSI.
> Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry. > Manufactured by C-TEC in the UK. > Eight detector zone circuits. > Four conventional sounder circuits. > Integral 1.5A EN54-4/A2 compliant switch mode PSU. > Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones. > Two on-board relays (Fire and Fault). > Two open-collector outputs (Remote and Reset). > 'Class change' and alert inputs. > Installer-friendly design. > Attractive flush or surface mountable plastic lid and enclosure - no bezel required. > Low 25mA quiescent current. > Multiple indicators. > System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system), optional CFP relay boards and optional EN54-13 compliant sounder circuit boards. > Space for two x 12V 3.3Ah VRLA batteries. > Fully compatible with C-TEC's ActiV range of conventional fire detectors. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CFP708-4 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 8 |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC CFP 8 Zone Conventional Fire Alarm Panel (CFP708-4)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC CFP 8 Zone Conventional Fire Alarm Panel (CFP708-4)
| Approvals/Certifications | Certified to EN54-2/4 by the LPCB (176b)/(0832-CPD-1704) |
| Mains Supply: | 230V 50/60Hz |
| Mains rated current: | 350mA maximum |
| Internal Power Supply: | 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault) |
| Total output current limited to: | 1.5A @ 230Vac (ImaxA eq 146mA) |
| Quiescent Current: | 25mA (mains failed, internal sounder active, PSU & gen fault LED lit) |
| Max. battery size and type: | 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah |
| No. of detector zone circuits: | 8 (Max. length per circuit is 500m) |
| Call Point Resistor Value: | 470 to 680Ω. |
| Max. devices per detector zone: | 25 detectors (or 32 detectors/manual call points combined) |
| No. of conventional sounder circuits: | 4 (Max. length per circuit is 500m) |
| EOL Resistor Value: | 6800Ω 5% Tol. 0/2W (blue, grey, red, gold) |
| Alarm Voltage: | 27V max, 20V min (final battery voltage) |
| Max. sounder output current: | 4 x 200mA (800mA total) |
| Auxiliary Relays: | Two: (1) Aux/ Fire; (2) Fault. Volt frree single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc. |
| Open collector outputs: | Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit voltage 27Vdc). |
| Other outputs: | 24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed). |
| Auxiliary inputs: | Two: (1)'Class Change' (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching). |
| Engineer (AL3) functions: | Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) when a new zone enters alarm; Enter fault diagnostic facilities. |
| Expansion connections: | Yes - for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards. |
| Product Dimensions (mm): | 380 W x 235 H x D 96mm |
| Construction & Finish: | Plastic lid and base; RAL7035 textured. |
| IP Rating: | IP30. |
| Weight: | 1.75kg (without batteries). |
| Operating Conditions/Temperature: | -5°C to 40°C. Max relative humidity: 95% |
