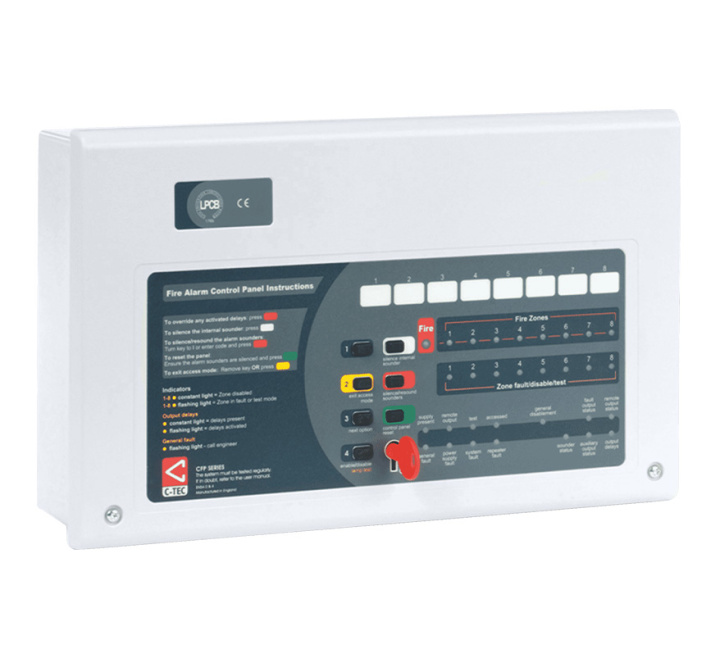

C-TEC CFP 8 Zone Repeater Panel (CFP760)
SKU
CFP760
£171.37
£142.81
C-TEC CFP 8 Zone Repeater Panel (CFP760)
In Stock
Product Details for C-TEC CFP 8 Zone Repeater Panel (CFP760)
Designed for use to repeat the functions of a master CFP standard or Alarmsense 2-8 Zone Fire Panel for remote parts of a property or to cover all potential fire service entrances.
Key Features of the CFP760 |
|---|
|
> Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of the site (e.g. all potential fire service entrances).
> Up to 8 repeaters per CFP master. > Includes its own Mains power supply that requires its own standby battery supply. > Provides the user with access to all AL1 and AL2 functions. > Master/Repeater communication achieved using CFP761 network driver cards (one CFP761 is supplied with the Repeater, an additional CF761 card is required at the master CFP). > Communicates over screened two-wire fire-resistant cable. > Total repeater network cable length should not exceed 1KM. > Attractive flush or surface mountable plastic lid and enclosure - no bezel required. |
| Brand | C-TEC |
|---|---|
| Manufacturer Part No. | CFP760 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 8 |
| Warranty | 1 Year |
Write Your Own Review
FAQ’s for C-TEC CFP 8 Zone Repeater Panel (CFP760)
No questions yet. Be the first to ask the question!
Product Specification for C-TEC CFP 8 Zone Repeater Panel (CFP760)
| Compatibility | Compatible with C-TEC's CFP Standard and CFP AlarmSense panels.(CFP Economy panels cannot be extended with this product). |
| Mains Supply: | 230V 50/60Hz |
| Internal Power Supply: | 19V-28.5V (27V nominal) |
| Max. Battery Size and Type: | 2 x 12V 2.1Ah VRLA connected in series for 72 hour standby. 2 x 12V 1.2Ah for 24 hours. |
| Max. Network Cable Length: | 1 KM |
| Product Dimensions (mm): | 380 W x 235 H x D 96 mm |
| Construction and Finish: | Plastic lid and base; RAL7035 textured |
| IP Rating: | IP30 |
| Weight: | 1.75kg (without batteries) |
| Operating Conditions/Temperature: | -5°C to 40°C. Max relative humidity: 95% |
