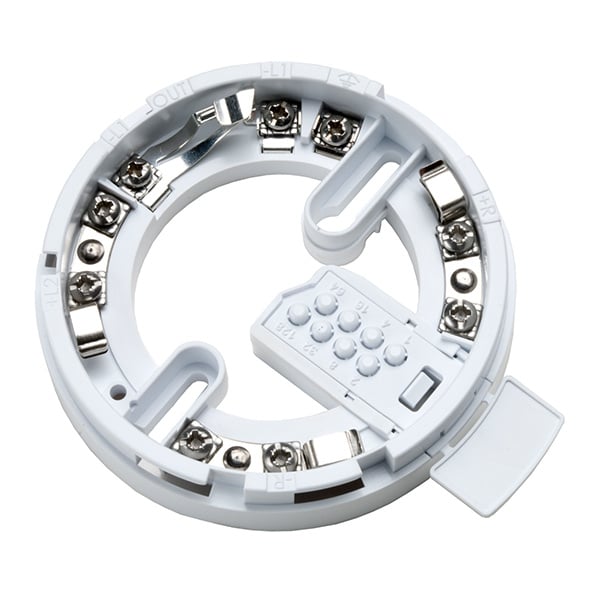

Apollo Universal XPERT 8 Intelligent Mounting Base (SA5000-200APO)
In Stock
Product Details for Apollo Universal XPERT 8 Intelligent Mounting Base (SA5000-200APO)
All detectors in the Soteria®, Discovery® and XP95® range fit into the XPERT 8 Intelligent Mounting Base. The base has a wide interior diameter for ease of access to cables and terminals. The ‘E-Z Fit’ feature allows you to fit the base screws, place the XPERT 8 Intelligent Mounting Base over the screws, slide it into place and tighten the screws.
The detector requires a clockwise rotation into the base for fitting. Additionally the detector can be locked into the base for increased security, by a grubscrew using a 1.5mm hexagonal driver.
The XPERT 8 card, Part Number 38532-064, supplied with the base, has pre-punched pips to remove to set the address. Refer to the XPERT 8 Intelligent Mounting Base Installation Guide 39215-005 for details on how to set the address.
Watch the Video
Key Features of the SA5000-200APO |
|---|
|
> Compatibility with Soteria, Discovery and XP95 detectors
> Isolated and Non-isolated devices supported > Isolated wiper - maintains loop connectivity during temporary removal of devices > Supplied with XPERT 8 Card for CoreProtocol® * > ‘E-Z Fit’ allows for simple mounting of the detector base after wiring > Base mark allows for LED detector alignment > Note: XPERT 8 card increases the address capacity to 254 when using Soteria detectors and CoreProtocol enabled fire control panels. |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | SA5000-200APO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Apollo Universal XPERT 8 Intelligent Mounting Base (SA5000-200APO)
Product Specification for Apollo Universal XPERT 8 Intelligent Mounting Base (SA5000-200APO)
| Code: | SA5000-200APO |
| Description: | Apollo XPERT 8 Base |
| Dimensions: | Diameter:100mm x D:20mm |
| Colour / finish: | White / Gloss |
| Materials: | Housing: Polycarbonate |
| Terminal functions: | L2: +L2 Loop in & out positive L1 in: -L1 in Loop (isolated) negative L2 out: -L1 out Loop (isolated) negative +R: +R Remote indicator positive connection -R: -R Remote indicator negative connection |
| Polarity: | L1 & L2 are polarity sensitive |
| Warranty: | 10 year |
