Apollo Discovery XPERT Base Sounder (58002-300APO)
In Stock
Product Details for Apollo Discovery XPERT Base Sounder (58002-300APO)

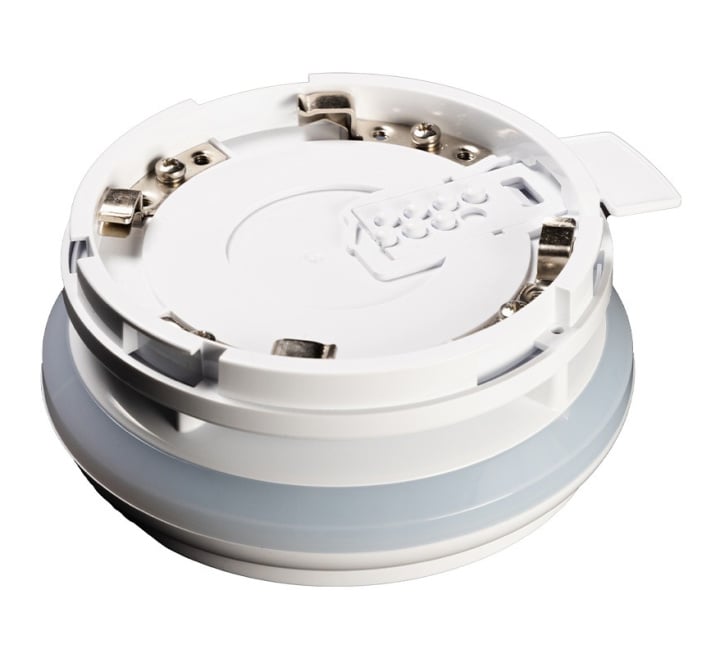

The Apollo 58002-300APO Discovery Base Sounder is an intelligent, addressable, and loop-powered AV device for providing clear and versatile audible fire alerts. Engineered for seamless integration, this sounder connects directly to an Apollo XPERT base (sold separately), ensuring a straightforward and efficient installation process within any compatible fire detection system.
A key feature of the Discovery Base Sounder is its exceptional installation flexibility. It can be used as an integrated base for any Apollo Discovery addressable detector, creating a single-point detector and sounder combination. Alternatively, it can function as a stand-alone sounder device when fitted with an optional cap (available separately in white, red, or black), allowing for strategic placement of audible alarms where a detector is not required.
This device offers advanced, granular control directly from a compatible fire control panel. System managers can implement group, global, or individual device control and benefit from detailed status reporting. Its comprehensive selection of 15 distinct tone pairs and 7 adjustable volume levels are all configured centrally, allowing for precise customisation to suit the acoustic requirements of any environment.
Key Features of the 58002-300APO |
|---|
|
> Simple installation using an XPERT 8 base (sold separately)
> Adjustable tone and volume (15 tone pairs, 7 volume settings) > Software defined group addressing with up to 16 group addresses > Built-in isolator (when used with XPERT 8 Base) > Unique acoustic self test > Set-up and testing of device at point of installation |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58002-300APO |
| Product Series | Discovery |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo Discovery, Apollo CoreProtocol |
| Warranty | 10 Years |
FAQ’s for Apollo Discovery XPERT Base Sounder (58002-300APO)
Product Specification for Apollo Discovery XPERT Base Sounder (58002-300APO)
| Product no.: | 58002-300APO |
| Description: | Apollo Discovery Base Sounder |
| Dimensions: | 110mm diameter x 46mm deep |
| Supply voltage: | 17V - 35 VDC |
| Digital communication: | Discovery and CoreProtocol (compatible) |
| Quiescent current: | 0.7 mA |
| Power-up surge current: | 0.7 mA |
| Alarm current, sounder on: | 6.85 mA |
| Alarm current at each volume level: | Volume 7: 6.85 mA Volume 6: 4.3 mA Volume 5: 3.6 mA Volume 4: 3 mA Volume 3: 2.5 mA Volume 2: 2.1 mA (not EN54-3 approved) Volume 1: 1.6 mA (not EN54-3 approved) |
| Max. sound output @ 90o: | 95 dB(A) |
| Operating temperature: | -20°C to +70°C |
| Humidity: | 0 - 95% RH (no condensation or icing) |
| IP rating: | IP21C rating approved per EN54-3 |
| Manufacturer's declared rating: | IP34 |
| Vibration, impact & shock: | EN54-3, EN54-17:2005 |
| Material: | Housing: White flame-retardant polycarbonate Terminals: Nickel plated stainless steel |
| Weight: | 198g |
