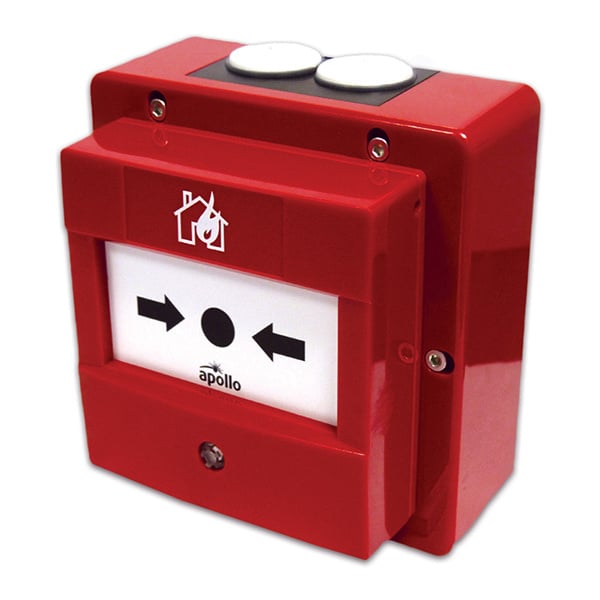

Apollo Waterproof Addressable Manual Call Point - 58200-951APO

The Apollo Waterproof Manual Call Point has a highly visible alarm indicator which can be seen from up to 10 metres away. The manual call point interrupts the polling cycle for a fast response, when activated. A combined LED indicator and front reset mechanism allows for a simple reset.

Electrical Description

The Waterproof Addressable Manual Call Point is loop powered and operates at 17-28V dc for all variants.

Operation

The address of each Manual Call Point is set at the commissioning stage by means of a seven-segment DIL switch.

A red alarm LED is provided on the Manual Call Point. This LED is controlled independently of the Manual Call Point, by the fire control panel.

Once activated, the Manual Call Point can be reset by inserting the reset key into the front facing LED, turning clockwise until a positive click and reset occurs.

The isolated version of the Manual Call Point incorporates a short circuit isolator which will ensure its operation in the event of a short circuit fault on the loop. Isolator operation is indicated by a yellow LED. For further details of the isolator refer to datasheet PP2090, available on request.

Mechanical Construction

The component parts of the Manual Call Point are moulded in a robust fire retardant polycarbonate. Datasheet PP2454 / Figure 1 shows the mounting hole dimensions and the available cable entry glands and datasheet PP2454 / Figure 2 shows the overall dimensions.

Communication

Protocol  - Device behaviour:
(Fire control panel dependant)

XP95  -  XP95
Discovery - Discovery
CoreProtocol - Discovery

IP Rated Installations

Apollo recommends installing the Waterproof Manual Call Point using cable entry from the bottom of the MCP. It is important that correctly IP rated cable glands are used to ensure the IP rating of the device is not compromised. All cable glands and unused cable entry blanking plugs must be fully tightened and sealed to ensure the IP integrity is maintained. Use of PTFE or similar thread sealer is recommended.
