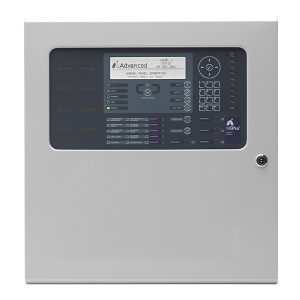

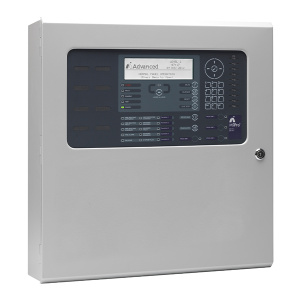

Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Deep Enclosure) (Nittan Protocol) (MX-5401ND)
SKU
MX-5401ND
£1,843.56
£1,536.30
Advanced MX-5401ND MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card - Deep Enclosure (Nittan Protocol)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Deep Enclosure) (Nittan Protocol) (MX-5401ND)
This Advanced MxPro Deep Fire Alarm Control Panel is expandable from 1 - 4 loops and is supplied with 4 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels and 25 System status LEDs. There are also 4 programmable function buttons with operational status LEDs. It has a high resolution, high contrast, graphical LCD display and a select & click programming aid for engineer configuration and end-user operation. Compatible with AdvancedLive for real-time system management. Suitable for small to large complex multi-area systems. Fully programmable on-site via the onboard alphanumeric keypad, or via PC-NET-022 configuration software. Add a network card to enable the panel to communicate with any other MxPro 5 / MxPro4 fire panels, remote terminal / network peripheral, BMS / graphical interface. Can be configured in a fault tolerant loop or radial format. (Nittan Evolution protocol). Comes with 1 loop card.
Key Features of the MX-5401ND |
|---|
|
> Connectivity to AdvancedLive (UK&I only), Ethernet on-board
> 20 programmable Zonal / 25 System LEDs > Nittan Evolution protocol > Advanced graphical LCD user interface and support for up to 200 fire zones by default > Microprocessor with real-time clock > Direct PC / modem connection > Installer friendly Auto-learn, Loop Detection and Onboard Scope facility > Easy commissioning/fault finding > Integral P-Bus for system expansion via available option cards > Advanced networking, peer-to-peer system, with up to 2000 zones > Programmable push buttons > Rack-mount options > Global compliance > 3-year warranty > Fully programmable > Installer's logo application > EN 54-2:1997 +A1:2006, EN 54-4:1997 +A1:2002 +A2:2006, EN 54-13:2005 (Pending) > Certified to EN54 Parts 2 & 4 by FM Approvals |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MX-5401ND |
Write Your Own Review
FAQ’s for Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Deep Enclosure) (Nittan Protocol) (MX-5401ND)
No questions yet. Be the first to ask the question!
Product Specification for Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Deep Enclosure) (Nittan Protocol) (MX-5401ND)
| SKU: | MX-5401ND |
| Description: | Advanced 1-4 Loop Fire Panel - Deep (Nittan) |
| Dimensions: | W:450mm x H:475mm x D:190mm |
| Cable entry: | 20mm knockouts - 30 x top, 11 x rear, 3 x bottom |
| Battery capacity: | Internal - 24v 4Ah min., 24v 45Ah max. |
| Base technology: | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display: | White backlit 240 x 64 graphical LCD - 6 lines of 40 characters |
| LED indicators: | 22 red (1 x Fire, 1 x more alarms, 20 x zonal programmable), 1 green (power), 13 amber and 12 bi-colour (Fault & System) |
| Controls: | Alpha numeric keypad permitting navigation, reset, mute, silence, resound, evacuate, and 4 x programmable push buttons |
| Protocol: | Nittan Evolution |
| No. of fire zones: | 200 per individual panel - 2000 when networked |
| No. of loops: | Dedicated Advanced 1-4 loop control panel |
| Devices per loop: | Protocol dependent |
| Loop current: | 500mA per loop |
| On-board: | Sounder circuits: 4 x 1 Amp programmable Relays: 2 x 1 Amp 30v AC/DC programmable (10mA, 5v min) - expandable to 4 using MXP-507 |
| Auxiliary supply: | 1 x 24v 500mA |
| Programmable input: | 1 x monitored programmable input on-board |
| Programmable key switch inputs: | 8 volt free inputs |
| Total available output current: | 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains supply: | 200 - 240v 47 - 63 Hz AC (+10%, -15% tolerance) 1.4A max |
| Charger current: | 2A temperature compensated |
| Ethernet port: | 10-Base-T, 100-Base-T: Providing AdvancedLive connectivity (UK&I) |
| Serial port: | 1 x on-board RS232 connection for PC, modem, IP or portable printer |
| USB interface: | 1 x USB B type connection for PC communication |
| Programming: | On-board keypad or PC running Windows tools |
| Event log: | 5000 Event & Diagnostic + 500 Fire |
| Networking: | Optional plug in Network Card (MXP-503 - Standard, or MXP-509 - Fault-Tolerant) |
| Enclosure/colour: | Steel IP30 / RAL7035 |
| Metalwork options: | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
| Compliance standard: | EN 54-2:1997 +A1:2006, EN 54-4:1997 +A1:2002 +A2:2006, EN 54-13:2005 (Pending) |
