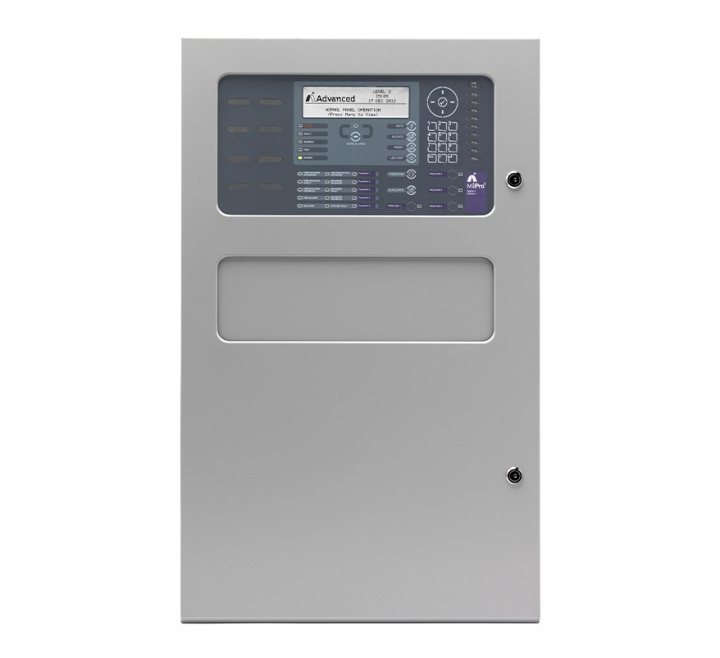

Advanced MxPro 5 2-8 Loop Fire Panel c/w 2 Loop Cards [Standard Network] (Apollo/Hochiki Protocol) (MX-5802)
SKU
MX-5802
£4,353.82
£3,628.18
Advanced MX-5802 MxPro 5 2-8 Loop Fire Panel c/w 2 Loop Cards - Standard Network (Apollo/Hochiki Protocol)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Advanced MxPro 5 2-8 Loop Fire Panel c/w 2 Loop Cards [Standard Network] (Apollo/Hochiki Protocol) (MX-5802)
The Advanced MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 on-board sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 8 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.
Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.
PC Software
An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.
Network
Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ipGateway™ or BMS/graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.
Key Features of the MX-5802 |
|---|
|
> Apollo/Hochiki Protocol
> 2-8 loop addressable fire control panel c/w 2 loop cards in extended enclosure > Standard network card supplied and fitted in panel > Up to 254 devices per loop (protocol dependent) > Up to 200,000 devices per network > Networkable up to 200 nodes > Built in voltage and current meters > On board or optional remote battery temperature sensor > Advanced’s simple select and click programming and configuration > Quick start and protect - A working system after an Auto learn is performed > 20 built-in, fully programmable LEDs > 5000 event log entries > 201 programmable false alarm management areas per panel > Timed enablement of isolated zones, input and output devices > Backward compatible with MxPro 4 network > Approved to EN54 Parts 2, 4 and 13 > Certified by FM Approvals to EN54 Parts 2 and 4 > Autolearn and Loop detection > Up to 2000 fire detection zones > True peer-to-peer networking > Supports intelligent/programmable remote terminals, BMS interface, IP Gateway and I/O Drivers > Circuit monitoring from any panel or repeater > Direct USB and RS232 PC connections > Peripheral expansion built in > 4 programmable push buttons > Complete device history from each panel > Programmable screen logo > Advanced logic delivering huge configuration opportunities |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MX-5802 |
| Product Series | MxPro 5 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Max No. of Loops Possible | 8 |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Hochiki ESP |
| Colour | Grey |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Advanced MxPro 5 2-8 Loop Fire Panel c/w 2 Loop Cards [Standard Network] (Apollo/Hochiki Protocol) (MX-5802)
No questions yet. Be the first to ask the question!
Product Specification for Advanced MxPro 5 2-8 Loop Fire Panel c/w 2 Loop Cards [Standard Network] (Apollo/Hochiki Protocol) (MX-5802)
| Base technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable push buttons |
| Protocol | Apollo (Xp95 / Discovery) & Hochiki ESP |
| Number of Fire Zones | 2000 when networked (400 max across 8 loops) |
| Number of Loops | Dedicated 2-8 loop control panel |
| Devices per Loop | Protocol dependent |
| Loop Current | 500mA per loop |
| On-Board Sounder Circuits | 8 x 1 Amp programmable |
| On-Board Relays | 4 x 1 Amp 30v AC/DC programmable (10mA, 5v min) - expandable to 8 using 2 x Mxp-507 |
| Auxiliary Supply | 2 x 24v 500mA 2 |
| Programmable Input | 2 x On-board Programmable Input |
| Programmable Key Switch Inputs | 16 x volt free digital inputs |
| Total Available Output Current | 2 x 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Battery Capacity | 2 x 24V 4Ah internal (min), 2 x 24V, 18Ah internal (max), or 1 x 24V 45Ah internal (max) and 1 x 24V 45Ah external (max) using optional battery enclosure |
| Charger Current | 2 x 2A temperature compensated |
| Serial Port | 2 x on-board RS232 connection for PC, modem, IP, or portable printer |
| USB Interface | 2 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools |
| Event Log | 2 x 5000 event & diagnostic + 500 fire |
| Printer (optional) | On-board |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Cable Entry (20mm knockouts) | 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear |
| Size H x W x D mm | 750 x 450 x 190 |
| Metalwork Options | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
| Approvals | EN 54-2:1998, EN 54-4:1998 & EN 54-13:2005 |
