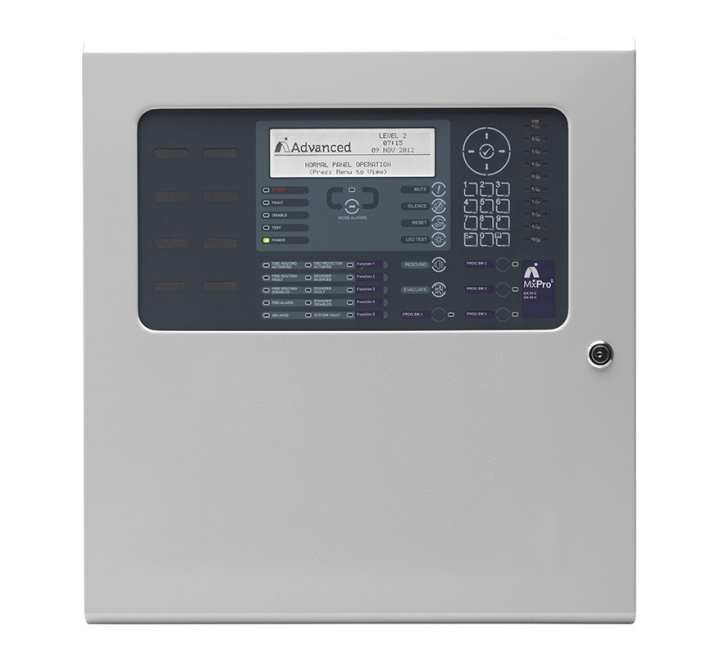

Advanced MxPro 5 1-2 Loop Fire Panel c/w 1 Loop Card (Deep Enclosure) (Apollo/Hochiki Protocol) (MX-5201D)
Limited Stock
Product Details for Advanced MxPro 5 1-2 Loop Fire Panel c/w 1 Loop Card (Deep Enclosure) (Apollo/Hochiki Protocol) (MX-5201D)
The Advanced MxPro 5 series control panels are fully expandable from 1 - 2 loops and supplied with 2 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end user operation.
Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.
PC Software
An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 Series of Fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.
Network
Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ‘ipGateway™’ or BMS/Graphical Interface. The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.
Key Features of the MX-5201D |
|---|
|
> Apollo/Hochiki Protocol
> 1-2 loop addressable fire control panel c/w 1 loop card in deep enclosure > Up to 254 devices per loop (protocol dependent) > Up to 200,000 devices per network > Networkable up to 200 nodes > Built in voltage and current meters > On board or optional remote battery temperature sensor > Advanced’s simple select and click programming and configuration > Quick start and protect - A working system after an Auto learn is performed > 20 built-in, fully programmable LEDs > 5000 event log entries > 201 programmable false alarm management areas per panel > Timed enablement of isolated zones, input and output devices > Backward compatible with MxPro 4 network > Approved to EN54 Parts 2, 4 and 13 > Certified by FM Approvals to EN54 Parts 2 and 4 > Autolearn and Loop detection > Up to 2000 fire detection zones > True peer-to-peer networking > Supports intelligent/programmable remote terminals, BMS interface, IP Gateway and I/O Drivers > Circuit monitoring from any panel or repeater > Direct USB and RS232 PC connections > Peripheral expansion built in > 4 programmable push buttons > Complete device history from each panel > Programmable screen logo > Advanced logic delivering huge configuration opportunities |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MX-5201D |
| Product Series | MxPro 5 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 2 |
| Number of Zones | 200 |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol, Hochiki ESP |
| Colour | Grey |
| Warranty | 3 Years |
